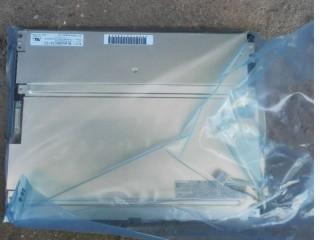

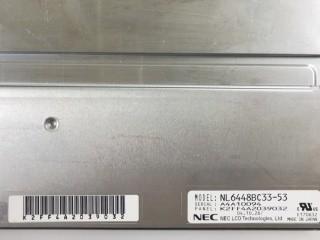

NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
Specifications
Brand Name :
NEC
Model Number :
NL6448BC33-53
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Price :
60USD
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
1000PCS
Delivery Time :
1 DAY
Packaging Details :
BOX
Panel Size :
10.4"
Resolution :
640(RGB)×480, VGA, 76PPI
Display Area :
211.2(W)×158.4(H) mm
Outline Size :
243(W)×185.1(H) ×11(D) mm
Signal Interface :
CMOS (1 ch, 6-bit) , 31 pins Connector
Environment :
-10 ~ 70 °C
Panel Type :
a-Si TFT-LCD, LCM
Pixel Format :
RGB Vertical Stripe
Bezel Opening :
215.4(W)×161.8(H) mm
Display Mode :
SA-SFT, Normally Black, Transmissive
Description

NL6448BC33-53 10.4 INCH NEC TFT-LCD 640(RGB)×480 [VGA] 76PPI PIXEL -10 ~ 70 °C industrial LCD panel

1. NEC NL6448BC33-53 Mechanical Details:

Pixel Features : Resolution 640(RGB)×480, VGA Dot Pitch(mm) 0.110×0.330 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.330×0.330 (H×V) [76PPI]
Mechanical Size : Active Area(mm) 211.2(H) × 158.4(V) Bezel Area(mm) 215.4(H) × 161.8(V)
Outline Dim.(mm) 243(H) × 185.1(V) Depth(mm) 10.5±0.5
Outline Features : Form Style Flat Rectangle Outline Shape -
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Spec : Weight 475/500g (Typ./Max.) Treatment Clear, Hard coating (3H)

2. NEC NL6448BC33-53 Optical Details:

Basic Information : Luminance(cd/m²) 380 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode SA-SFT, Normally Black, Transmissive
Best View on Symmetry Response(ms) 18/16 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 262K (6-bit)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 41% sRGB 57% coverage
Adobe RGB 43% coverage DCI-P3 43% coverage
Rec.2020 31% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3. NEC NL6448BC33-53 Backlight Details:

Backlight Features: Shape Straight Type CCFL Position Edge light type (Top side)
Replacement Replaceable (104LHS39) Quantity 2 pcs Life Time -
Lamp Electrical : Voltage Supply 520V (Typ.) Current Supply 2.0/5.0/5.5mA (Min./Typ./Max.)
Frequency 50/70KHz (Min./Max.) Startup Voltage 850/1100V (Min.)(Ta=+25/-10℃)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLL-3PINS-LHH
Backlight Driver : No

4. FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL6448BC33-53 10.4 INCH 640×480 76PPI LCD NEC TFT Display 243(W)×185.1(H) ×11(D) mm
