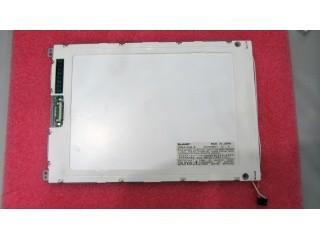

LM641836R INCH Sharp TFT LCD Display 9.4 70 cd/m² (Typ.) 191.97(W)×143.97(H) mm
LM641836R INCH Sharp TFT LCD Display 9.4 70 cd/m² (Typ.) 191.97(W)×143.97(H) mm
LM641836R INCH Sharp TFT LCD Display 9.4 70 cd/m² (Typ.) 191.97(W)×143.97(H) mm
LM641836R INCH Sharp TFT LCD Display 9.4 70 cd/m² (Typ.) 191.97(W)×143.97(H) mm
LM641836R INCH Sharp TFT LCD Display 9.4 70 cd/m² (Typ.) 191.97(W)×143.97(H) mm
LM641836R INCH Sharp TFT LCD Display 9.4 70 cd/m² (Typ.) 191.97(W)×143.97(H) mm
LM641836R INCH Sharp TFT LCD Display 9.4 70 cd/m² (Typ.) 191.97(W)×143.97(H) mm
LM641836R INCH Sharp TFT LCD Display 9.4 70 cd/m² (Typ.) 191.97(W)×143.97(H) mm
Specifications
Brand Name :
SHARP
Model Number :
LM641836R
Certification :
IS09001
Place of Origin :
Japan
MOQ :
1PCS
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
500
Delivery Time :
Working Day:1-3 Days
Packaging Details :
Original Factory Package
Panel Size :
9.4
Resolution :
640(RGB)×480, VGA
Panel Type :
CSTN-LCD, LCM
Active Area(mm) :
191.97 × 143.97 (H×V)
Bezel Area(mm) :
201.4 × 153.4 (H×V)
Max. Ratings :
-25 ~ 60 °C
Outline(mm) :
260 × 174 (H×V×D)
Arrangement :
Rectangle
Work Mode :
STN, Black/White mode, Transmissive
Description

LM641836R 9.4 INCH SHARP TFT-LCD 640(RGB)×480, VGA PIXEL-25 ~ 60 °C Industrial LCD Panel

1. Main Information:

LM641836R is a 9.4" diagonal FSTN-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 45°C , a storage temperature range of -25 ~ 60°C . Based on its features, Panelook recommend that this model be applied to Industrial etc.

2. Sharp LM641836R Optical Details

Basic Information : Luminance 70 cd/m² (Typ.) Contrast Ratio 11 : 1 (Typ.) (Transmissive)
Good View at - Response Speed 550 (Typ.)(Tr+Td) (ms)
Viewing Angle - Operating Mode STN, Black/White mode, Transmissive
Color Performance : Chromaticity - Support Color Monochrome

3. Sharp LM641836R Mechanical Details

Pixel Features : Number of Pixel 640×480 [VGA] Arrangement Rectangle
Dot Pitch(W×H) 0.30×0.30 mm Pixel Pitch(W×H) 0.30×0.30 mm [84PPI]
Physical Size : Active Viewing 191.97(W)×143.97(H) mm Overall Dim. 260(W)×174(H) mm
Bezel Opening 201.4(W)×153.4(H) mm Overall Depth 7.0 (Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style -
Other Detail : Mass 340g Surface -

4. Sharp LM641836R Lightting Details

Lamp Features: Lamp Shape - Lamp Type CCFL Position Edge light type (Bottom side)
Exchange - Amount 1 pcs Life -
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
1 pcs 4 pins
Backlight Driver : No


5. FAQ:
Q1: What's the quality of your LCD Panel?

A : Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
