G150XVN01.0 AUO 15.0 1024(RGB)×768, 300 cd/m² INDUSTRIAL LCD DISPLAY
G150XVN01.0 AUO 15.0 1024(RGB)×768, 300 cd/m² INDUSTRIAL LCD DISPLAY
G150XVN01.0 AUO 15.0 1024(RGB)×768, 300 cd/m² INDUSTRIAL LCD DISPLAY
G150XVN01.0 AUO 15.0 1024(RGB)×768, 300 cd/m² INDUSTRIAL LCD DISPLAY
G150XVN01.0 AUO 15.0 1024(RGB)×768, 300 cd/m² INDUSTRIAL LCD DISPLAY
G150XVN01.0 AUO 15.0 1024(RGB)×768, 300 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
AUO
Model Number :
G150XVN01.0
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROWS
Delivery Time :
1-2DAYS
Packaging Details :
STANDARD PACKING
Brand :
AUO
Diagonal Size :
15.0"
Resolution :
1024(RGB)×768, XGA 85PPI
Luminance :
300 cd/m²
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Power Supply :
3.3V (Typ.)
Environment :
Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C
Description

AUO G150XVN01.0 Carton Details

Package Type Pcs/Package Box/Package Package LWH (mm) G.W (kgs) Volume (m³) Remarks
Carton 10 1 410×278×360 12.50 0.0410
Air pallet 320 32 1140×830×1575 413.00 1.4903
Sea pallet 400 40 1140×830×2070 526.00 1.9586
Sea HQ pallet 480 48 1140×830×2430 626.00 2.2993

G150XVN01.0 AUO 15.0

G150XVN01.0 AUO 15.0

G150XVN01.0 AUO 15.0

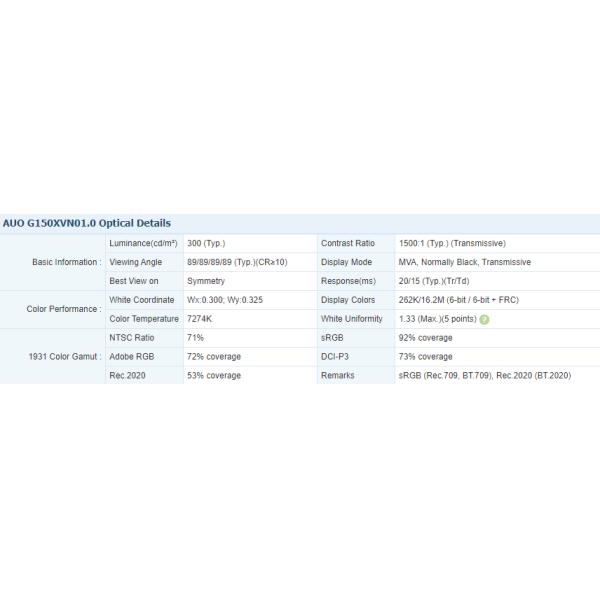

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.1(D) mm, viewing area size of 307.2(W)×231.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 950g (Max.). As a MVA, Normally Black, Transmissive LCM product, G150XVN01.0 can provides 300 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G150XVN01.0 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.

G150XVN01.0 AUO 15.0
