Specifications
Brand Name :
Mitsubishi
Model Number :
AA078AA01-ten
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 32.5-34 PCS
Payment Terms :
T/T
Supply Ability :
1k/m
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
Display Size :
7.8inch
Display Area :
184.8(H)*69.3(V)mm
Number of Dots :
800*RGB*300
Pixel Pitch :
0.231(H)*0.231(V)mm
Color Pixel Arrangement :
RGB vertical stripe
Display Mode :
Normally black
Number of Color :
262K(6bit/color),16.7M(8bit/color)
Viewing Angle :
-88~88º(H),-88~88º(V)
Description

7.8 inch long horizontal screen industrial control LCD screen display screen 800 * 300 LVDS interface 500 brightness

Product Overview

1.1 Description
The AA078AA01 is 7.8" color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel,driver ICs,control circuit,LED driver and backlight unit.

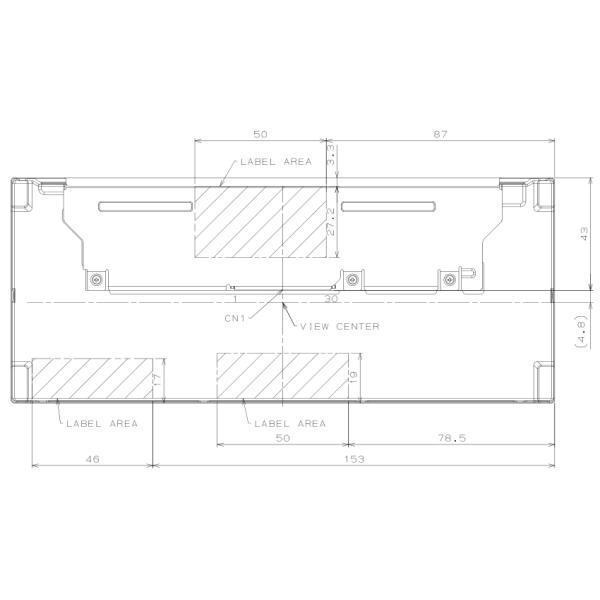

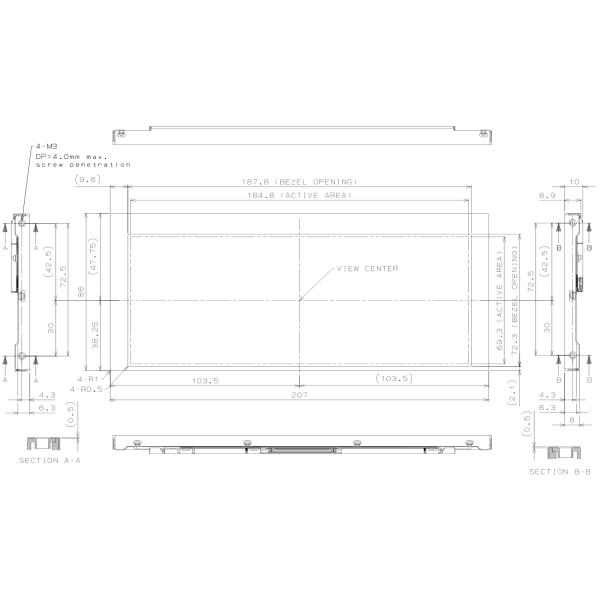

Product Size

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface

General specifications

No. Item Specification Unit
1
LCD Size
7.8 inch
2
Panel Type
IPS
-
3
Resolution
800x3 (RGB) x 300
pixel
4
Display Mode
Normally black
-
5
Display Number of Colors
262K(6bit/color),16.7M(8bit/color)
-
6
Viewing Direction
-88~88º(H),-88~88º(V)
-
7
Contrast Ratio
1000:1 -
8
Luminance
500
cd/m2
9
Module Size
207(H ) x 86(V) x10(D)
mm
10
Active Area
184.8(H) x 69.3(V)
mm
11
Pixel Pitch
0.231(H ) x 0.231(V)
mm
12
Surface Treatment
Anti-glare and hard-coating 3H
-
13
Module Mass
200
g
14
Driver IC RAM Size
240x24x320
bit
15
Backlight Unit
LED,edge-light
-
16
Interface
LVDS(6 bit/8bit)
-
17
Operating Temperature
-30~80
18
Storage Temperature
-30~80

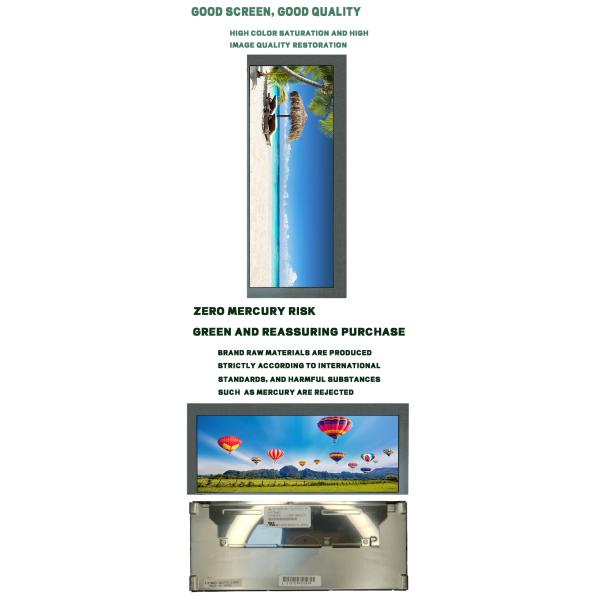

Product Details

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface

Our strengths

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface

Our factory

7.8 Inch Long Horizontal LCD Display Screen 800 * 300 LVDS Interface

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 1-2weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
