2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
Specifications
Brand Name :
Adia
Model Number :
YT269BHD002
Certification :
RoHS
Place of Origin :
china
MOQ :
10pcs
Price :
USD 19-20/ PCS
Supply Ability :
1k/m
Delivery Time :
20-25
Packaging Details :
50cm*50cm*60cm
Type: :
TFT LCD Display
Supplier Type: :
Manufacturer
Display Size: :
2.69inch
display type :
Normally Black，Transmissive
Resolution: :
RGB1280*720
Interface: :
SPI+LVDS
Viewing Angle: :
IPS Full View Angle
Driver IC: :
SC5014
Contrast Ratio: :
1000:1
Application :
For Projector
Description

2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight

2.69 inch 1280 * 720 projector LCD FOG panel no backlight high-definition IPS TFT LCD screen panel LVDS 30 pin projector

Product Overview

YT269BHD002 is a TFT-LCD module. It consists of a TFT-LCD panel, driver IC, and FPC. The 2.69-inch display area contains 1280 * 720 pixels and can display up to 16.7M colors. This product is suitable for various projector display terminals and meets RoHS environmental standards.
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight

General Specifications

No.
 Item Specification Unit Remark
1 LCD Size 2.69 inch -
2 Panel Type IPS type LCD screen (module) - -
3 Resolution 1280RGB*720 pixel -
4 Display Mode Normally Black,Transmissive - -
5 Display Number of Colors 16.7M - -
6 Viewing Direction All - Note
7 Contrast Ratio 1000:1 - -
8 response time 30 ms -

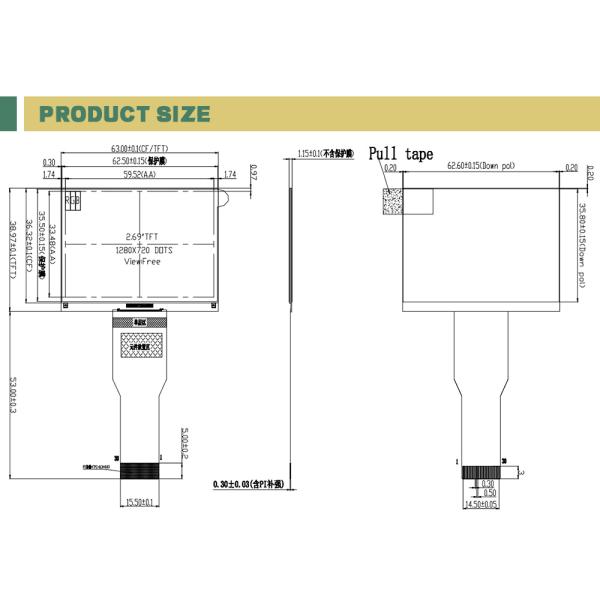

9 Module Size
63.0(W ) x 38.97(H)x1.25(D)
 mm Note
10 Active Area 59.52(W) x 33.48(H) mm Note
11 Pixel Pitch 0.045(H) x 0.045(V) mm -
12 Weight TBD(TYP) g -
13 LCD Driver IC SC5014 - -
14 Color arrangement RGB stripe - -
15 pin count 30 - -
16 Interface SPI+LVDS - -
17 Operating Temperature -20~80 ℃ -
18 Storage Temperature -30~80 ℃ -

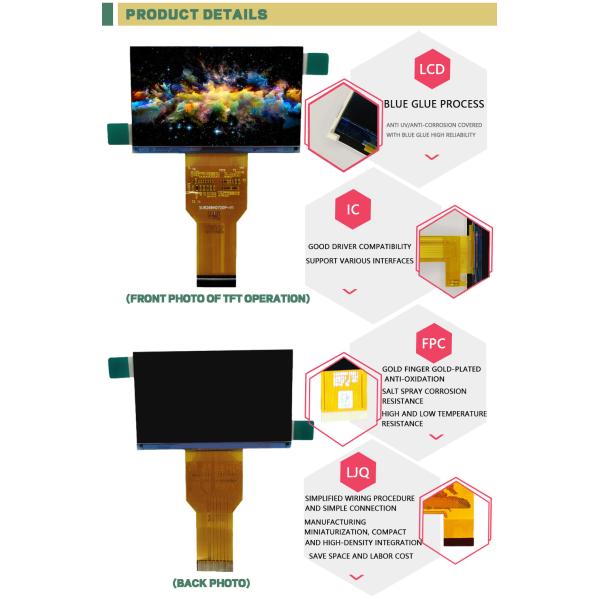

Product Details

2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 1-2weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
