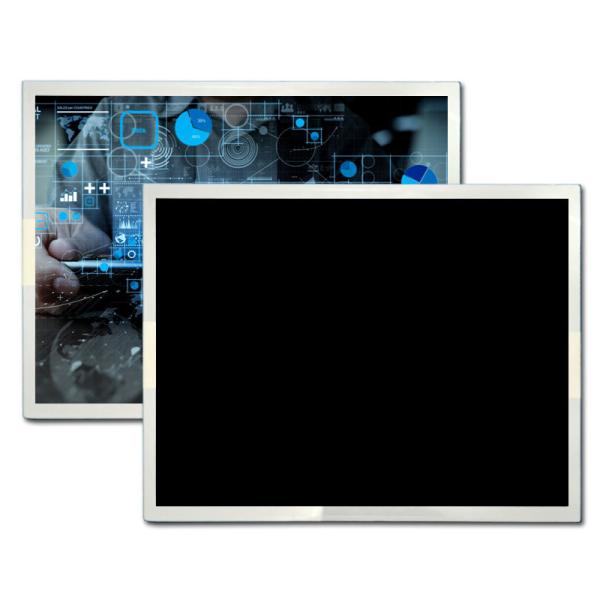

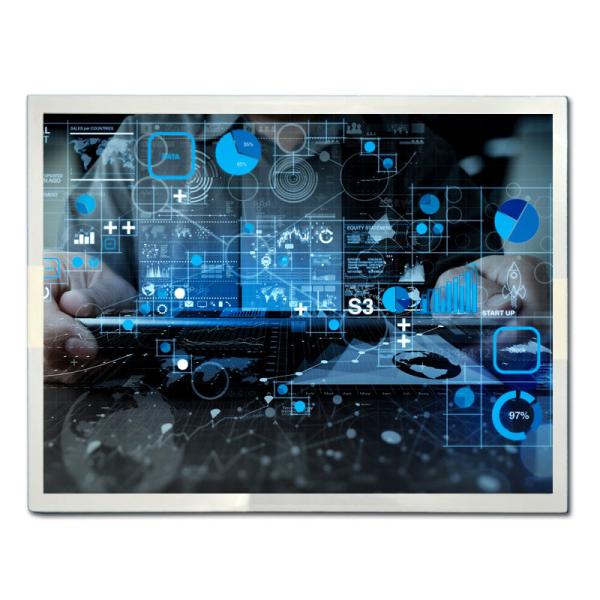

DV150X0M-N12 BOE LCD Screen 1024×768 Resolution Automotive LCD Display
DV150X0M-N12 BOE LCD Screen 1024×768 Resolution Automotive LCD Display
DV150X0M-N12 BOE LCD Screen 1024×768 Resolution Automotive LCD Display
DV150X0M-N12 BOE LCD Screen 1024×768 Resolution Automotive LCD Display
DV150X0M-N12 BOE LCD Screen 1024×768 Resolution Automotive LCD Display
DV150X0M-N12 BOE LCD Screen 1024×768 Resolution Automotive LCD Display
DV150X0M-N12 BOE LCD Screen 1024×768 Resolution Automotive LCD Display
DV150X0M-N12 BOE LCD Screen 1024×768 Resolution Automotive LCD Display
Specifications
Brand Name :
BOE
Model Number :
DV150X0M-N12
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Delivery Time :
1~7 working days
Packaging Details :
Customized
Size (inch) :
15
Brightness (cd/m²) :
350
Resolution :
1024×768
Active Area (W*H) :
304.128×228.096
Outline Dimension (W*H*T) :
326.5×253.5×10
Operating Temperature :
-20 ~ 70 °C
Storage Temperature :
-20 ~ 70 °C
Viewing angle(RLUD) :
89/89/89/89
Viewing Direction :
IPS
Contrast Ratio :
1000
LED Lifetime (hrs) :
50K
Interface :
LVDS 20
Description

15 inch DV150X0M-N12 BOE LCD Screen with 1024×768 Pixels Resolution Automotive LCD Display

Brand BOE
Model P/N DV150X0M-N12
Diagonal Size 15.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA 85PPI
Pixel Format RGB Vertical Stripe
Active Area 304.128(W)×228.096(H) mm
Bezel Opening 306.5(W)×230.1(H) mm
Outline Dim. 326.5(W)×253.5(H)×10(D) mm
Luminance 350 cd/m² (Typ.)
View Direction Symmetry
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Support Color 16.7M 72% NTSC
Weight 930g
Frame Rate 60Hz
Treatment Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio 1000:1 (Typ.) (TM)
Response Time 30 (Typ.)(Tr+Td)
Operating Mode ADS, Normally Black, Transmissive
Light Source WLED [12S4P] , 50K hours , With LED Driver
Designed For Industrial
Touch Panel Without
Interface Type eDP (1 Lane) 30 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C
