2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance
2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance
2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance
2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance
2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance
2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance
2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance
2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance
Specifications
Brand Name :
ESEN
Model Number :
T028QV25
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
1000PCS
Price :
Please make an enquiry
Payment Terms :
T/T,L/C
Supply Ability :
300K/mth
Delivery Time :
3-4 weeks
Packaging Details :
All the products are packed in right way
DISPLAY TYPE :
CTC 2.8" TFT
MAIN LCD DRIVER IC :
ILI9341V
VIEWING DIRECTION :
6 0’CLOCK
GRAY SCALE INVERSION DIRCTION :
12 O’CLOCK
OPTIMUM VIEWING ANGLE: :
12 O’CLOCK
LUMINANCE :
230MIN Cd/M2 250TYP Cd/M2
OPERATING TEMP :
-20°C~70°C
STORAGE TEMP :
-30°C~80°C
INTERFACE :
4 SPI
Description

2.8inch Tft Lcd 2.8 Tft Spi 240 X 320 Module ILI9341V IC Resistor Touch Panel Tapeable resistance.

2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance

circuit diagram

2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance

1.Overview

T028Q11 is a 2.8-inch wide LCD cell with thin film transistors as active elements and contains 240(H) X 320(V) pixels. Each pixel is divided into red, green and blue dot, which are arranged in vertical stripe. The cell is normally white mode, and can be applied to the transmission type display. Backlight unit (BLU) and circuit board for the cell are not built in.

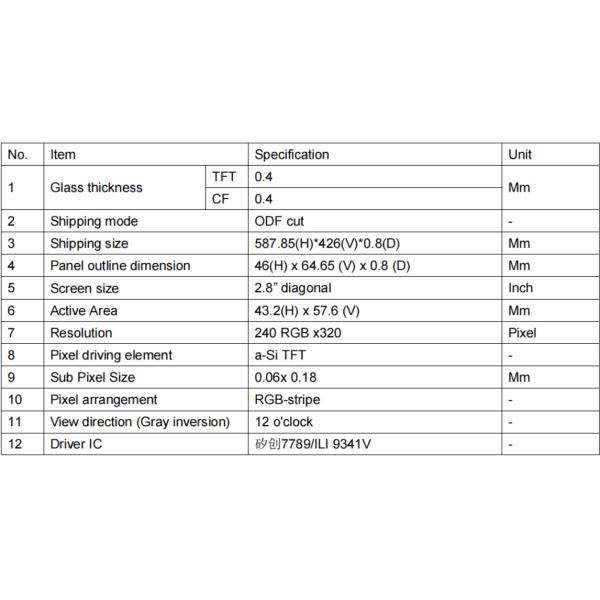

2.General Specification

2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance
