2.1'' 480 X 480 IPS Circular TFT Liquid Crystal Display Module ST7701S IC SPI MIPI
2.1'' 480 X 480 IPS Circular TFT Liquid Crystal Display Module ST7701S IC SPI MIPI
2.1'' 480 X 480 IPS Circular TFT Liquid Crystal Display Module ST7701S IC SPI MIPI
2.1'' 480 X 480 IPS Circular TFT Liquid Crystal Display Module ST7701S IC SPI MIPI
Specifications
Brand Name :
ESEN
Model Number :
TO21B018
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
1000PCS
Price :
Please make an enquiry
Payment Terms :
T/T,L/C
Supply Ability :
300K/mth
Delivery Time :
3-4 weeks
Packaging Details :
All the products are packed in right way
Model No :
TO21B018
Size :
2.1 inch
Interface :
SPI+RGB,MIPI
Resolution :
480mm*480mm
Driver IC :
ST7701S
Viewing Angle :
IPS Full Viewing Angle
Luminance :
320cd/m2

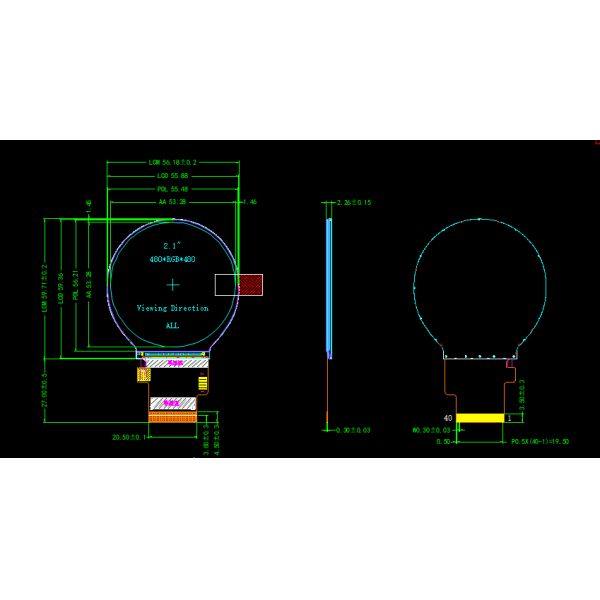

LCM Dimension :
56.18*59.71*2.26mm
Active Area :
53.28*53.28mm
FPC Connecting Mode :
40 Pin Plug in FPC
Touch Panel :
Without Touch,Capacitive Touch Panel Optional Support Customization
Testing Board :
Optional
Description

2.1 inch 480 x 480 IPS Circular TFT Liquid Crystal Display Module ST7701S IC SPI MIPI Circular LCD Display With Customized Touch Screen CTP

2.1'' 480 X 480 IPS Circular TFT Liquid Crystal Display Module ST7701S IC SPI MIPI

2.1-inch OLED is widely applied in industries such as smart home appliances and smart home systems.

FQA

Question: Can I have my logo printed on my product?
Answer: Yes, we can carry out ODM/OEM development design, production and processing customization according to your requirements.

Question: Besides the 2.1-inch size, do you have other sizes of models?
Answer: Yes, we have standard TFT LCD display screen sizes ranging from 0.42 inches to 15.6 inches. We can design according to your requirements, with different resolution types and different brightness specifications to meet the needs of your project in indoor and outdoor applications. It supports interfaces such as RGB, LVDS, MIPI, HDMI, etc., and supports various flexible printed circuit boards (FPC) designs. Of course, you can also choose single voltage (only VADD) and multi-voltage.

Precautions For Use of LCD modules

1. Do not attempt to disassemble the LCD Module. 11.1.7. If the logic circuit power is off, do not apply the input signals.

2. To prevent destruction of the elements by static electricity, be careful to maintain an optimum work environment.

3. Be sure to ground the body when handling the LCD Modules.

4. Tools required for assembly, such as soldering irons, must be properly ground.

5. To reduce the amount of static electricity generated, do not conduct assembly and other work under dry conditions.

6. The LCD Module is coated with a film to protect the display surface. Be care when peeling off this protective film since static electricity may be generated.
