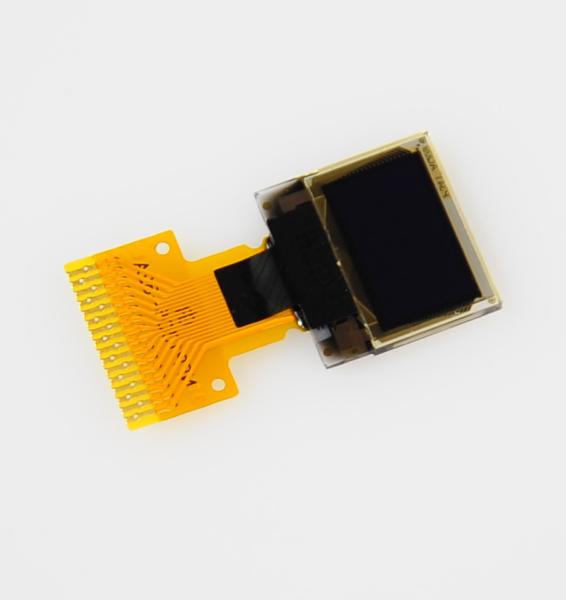

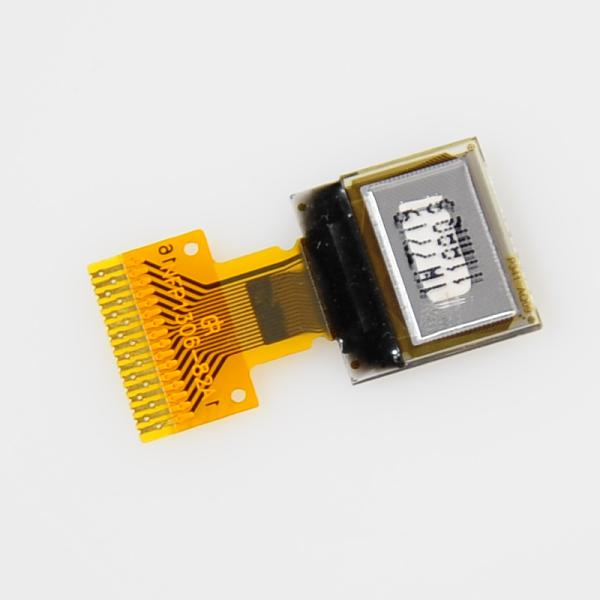

0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
Specifications
Brand Name :
ESEN
Model Number :
TX042PMH16
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
1000PCS
Price :
Please make an enquiry
Payment Terms :
T/T,L/C
Supply Ability :
300K/mth
Delivery Time :
3-4 weeks
Packaging Details :
All the products are packed in right way
Display Mode :
Passive Matrix
Display Color :
Monochrome (White)
Drive Duty :
1/40 Duty

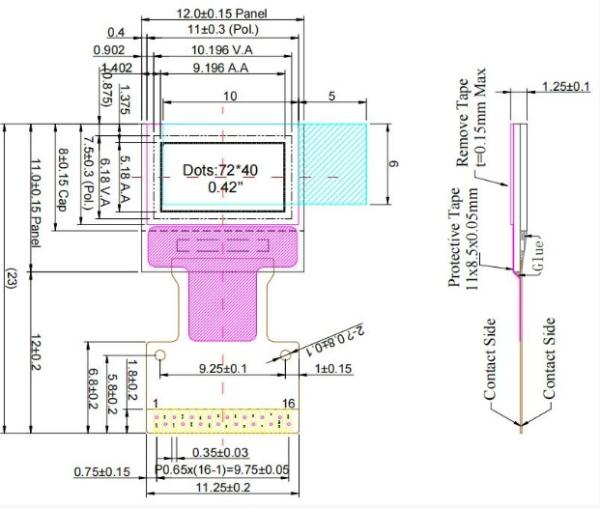

Outline Drawing :
According to the annexed outline drawing
Number of Pixels :
72 x40
Panel Size :
12x11x1.25 (mm)
Active Area :
9.196 x5.18 (mm)
Pixel Pitch :
0.128 x 0.13 (mm)
Pixel Size :
0.108 x 0.11 (mm)
Driver IC :
S S D1315
FP C Numbe :
NFP1315-87
Interface :
4-wire S PI, I2C
Luminance :
430cd/m2
FPC Connecting Mode :
16 Pin Soldering FPC
Description

X042-7240TSWPG01-H16 Folding Type OEL Display Module Pixel Number: 72 x 40, Monochrome, COG Package

Special Tips:When design main board, Please add Electronic Switch circuit, otherwise, will be caused leak current

1. Basic Specifications

1.1 Display Specifications

1.2 Mechanical Specifications

1.3 Active Area / Memory Mapping & Pixel Construction

1.4 Mechanical Drawing

1.5 Pin Definition

2. Absolute Maximum Ratings

3. Optics & Electrical Characteristics

3.1 Optics Characteristics

3.2 DC Characteristics

3.3 AC Characteristics

3.3.1.1 I2C Interface Characteristics

3.3.1.2 I2C Interface with Internal Charge Pump

3.3.2.1 Serial Interface Timing Characteristics: (4-wire SPI)

3.3.2.2 4-wire Serial Interface with Internal Charge Pump

4. Functional Specification

4.1 Commands

4.2 Power down and Power up Sequence

4.2.1 Power up Sequence

4.2.2 Power down Sequence

4.3 Reset Circuit 4.4 Actual Application Example

4.4.1 VCC Supplied Externally

4.4.2 VCC Generated by Internal DC/DC Circuit

5. Reliability

5.1 Contents of Reliability Tests

5.2 Failure Check Standard

6. Outgoing Quality Control Specifications

6.1 Environment Required

6.2 Sampling Plan

6.3 Criteria & Acceptable Quality Level

6.3.1 Cosmetic Check (Display Off) in Non-Active Area

6.3.2 Cosmetic Check (Display Off) in Active Area

6.3.3 Pattern Check (Display On) in Active Area

7. Package Specifications

8. Precautions When Using These OEL Display Modules

8.1 Handling Precautions

8.2 Storage Precautions

8.3 Designing Precautions

8.4 Precautions when disposing of the OEL display modules

8.5 Other Precautions

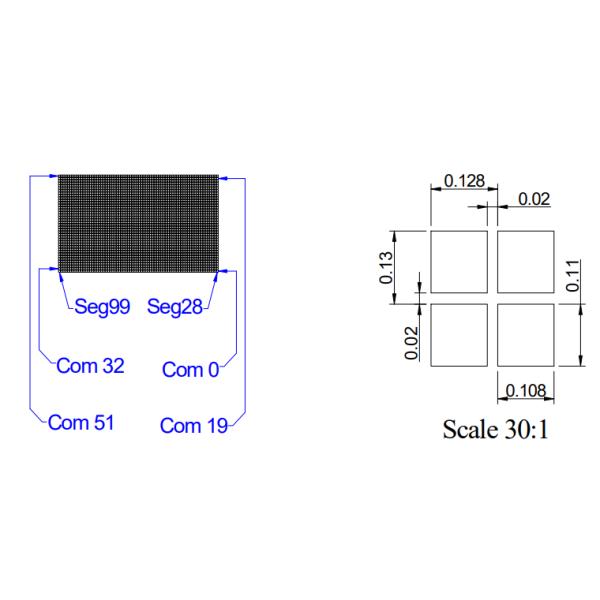

Active Area / Memory Mapping & Pixel Construction 0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White

0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White

Pin Definition

0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White

0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White

Contents of Reliability Tests

0.42'' 72x40 Monochrome OLED Display SSD1315 16 Pin 4 Wire SPI I2C White
