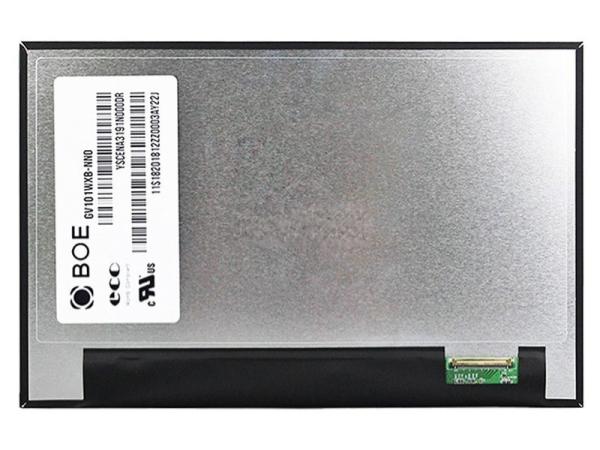

10.1 Inch Wide Temperature IPS Tft Lcd Display 1280x800 With Lvds Interface
10.1 Inch Wide Temperature IPS Tft Lcd Display 1280x800 With Lvds Interface
10.1 Inch Wide Temperature IPS Tft Lcd Display 1280x800 With Lvds Interface
10.1 Inch Wide Temperature IPS Tft Lcd Display 1280x800 With Lvds Interface
10.1 Inch Wide Temperature IPS Tft Lcd Display 1280x800 With Lvds Interface
10.1 Inch Wide Temperature IPS Tft Lcd Display 1280x800 With Lvds Interface
Specifications
Brand Name :
BOE
Model Number :
GV101WXM-NN0-3GP0
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
$35
Payment Terms :
T/T
Supply Ability :
5000pcs
Delivery Time :
3-5 work days
Packaging Details :
Original packaging
Outline Dimension :
229.45(W)×149.22(H)×3.42(D)mm
Active Area :
216.96(W)×135.6(H)mm
Number Of Pixels :
1280(RGB)×800
Interface :
LVDS (1 ch, 8-bit)
Luminance :
330cd/㎡
Operating TEMP :
-20 ~ 70 °C
Description

10.1 Inch Wide Temperature IPS Tft Lcd Display 1280x800 With Lvds Interface

General Description:

As an ADS, normally black display, transmissive LCD module product, GV101WXM-NN0-3GP0 can provide 330 cd/m² display brightness 1000:1 transmissive contrast ratio, and 80/80/80/80 (Typ.)(CR≥10)(left/right/up/down) viewing angle, the best viewing angle is full viewing angle, and it has a response time of 35 (Typ.)(Tr+Td) ms.

Specifications:

Parameter Specification Unit
Active Area 216.96(W)×135.6(H) mm
Number Of Pixels 1280(RGB)×800 pixels
Luminance 330 cd/m² (Typ.)
Pixel Arrangement Pixels RGB stripe arrangement
Display Mode Normally Black
Display Colors 16.7M colors
Interface LVDS (1 ch, 8-bit)
Contrast Ratio 1000 : 1
Viewing Angle(CR>10) 80/80/80/80 (Typ.)
Response Time 35 (Typ.)(Tr+Td) ms
Color Gamut 50%NTSC
Surface treatment Hard coating
Outline Dimension 229.45(W)×149.22(H)×3.42(D) mm

Absolute Maximum Ratings:

Item

Symbol

 Values

Unit
Min. Max.
Operation Temperature TOP -20 70 ℃
Storage Temperature TST -30 80 ℃

10.1 Inch Wide Temperature IPS Tft Lcd Display 1280x800 With Lvds Interface

Handling Precautions:

When returning the module for repair or etc., Please pack the module not to be broken. We recommend to use the original shipping packages.
