ISO EN344 BS-953 Safety Shoe Impact Testing Machine AC 220V
ISO EN344 BS-953 Safety Shoe Impact Testing Machine AC 220V
ISO EN344 BS-953 Safety Shoe Impact Testing Machine AC 220V
ISO EN344 BS-953 Safety Shoe Impact Testing Machine AC 220V
ISO EN344 BS-953 Safety Shoe Impact Testing Machine AC 220V
ISO EN344 BS-953 Safety Shoe Impact Testing Machine AC 220V
ISO EN344 BS-953 Safety Shoe Impact Testing Machine AC 220V
ISO EN344 BS-953 Safety Shoe Impact Testing Machine AC 220V
Specifications
Brand Name :
GESTER
Model Number :
GT-KB17
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/month
Delivery Time :
10-30 days
Packaging Details :
Wooden Packaging
Drop height range :
0- 1200mm
Power supply :
1∮AC220V 50HZ 5A
Dimensions(L x W x H) :
60 x 70 x 220cm
Weight :
230kg
Warranty :
1 Year
Price :
Factory Price
Description

ISO EN344 BS-953 Safety Footwear/Shoes Impact Testing Machine/Tester

Application
It is used for impact resistance of safety shoes. Impact steel head of safety shoes by 100J or 200J kinetic energy, and inspect it subsidence to check it quality.

Feature

  • Equip with protection fence, to avoid hazardous objects splash.
  • Control box separate with impactor, to protect personnel security.
  • Equip with electromagnet absorption device and automatically grab impact head to set height.
  • Equip with two buffer cylinder, to avoid second impact.

Key Specification

Model GT-KB17A GT-KB17B GT-KB17C
Drop height range 0- 1200mm
Impact energy 200±2 J 100±2 J 101.7±2 J
Impact hammer

Wedge, Length 75mm,

Angle 90°

Cylinder,

Diameter 25.4mm
Impact surface Corner radius R3 mm Spherical radius R25.4mm Length 152.4±3.2 mm
Impact hammer mass 20±0.2 kg 22.7±0.23kg
Power supply 1∮AC220V 50HZ 5A
Dimensions(L x W x H) 60 x 70 x 220cm
Weight 230kg
Standards

EN ISO 20344-2020 Section 5.4 and 5.20,

AS/NZS 2210.2 Section5.4 and 5.16

GB/T 20991 Section 5.4 and 5.16,

BS EN-344-1 Section 5.3

BS-953 Section 5, ISO 20345

ISO 22568-1-2019, 5.3.1.1

CSA-Z195-14 Section 6.2,

ANSI-Z41 Section 1.4.5 ,

ASTM F2412 Section 5,

ASTM F2413 Section 5.1,

NOM-113-STPS-2009 Section 8.3

CSA-Z195-14 Section 6.4,

ASTM F2412 Section 7,

ASTM F2413 Section 5.3,

NOM-113-STPS-2009 Section 8.6

Accessories

Standard accessories 1set Toecap clamp device
1pc Power line

Option accessories

 Air compressor
Metatarsal protective test clamp device for EN ISO 20344-2020 Section 5.20

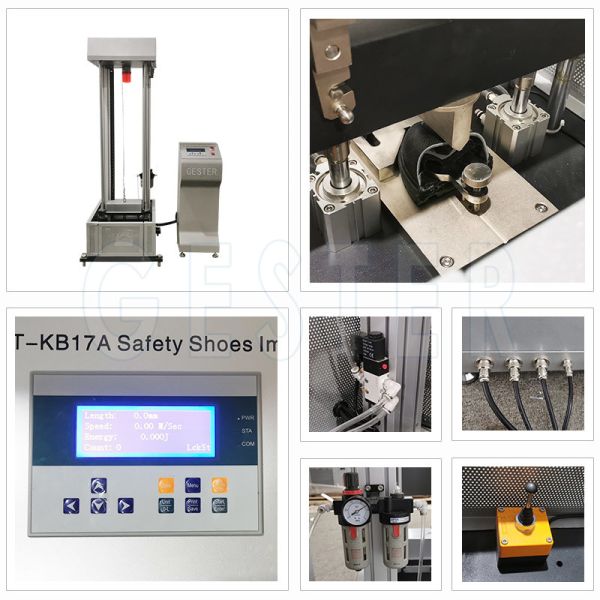

Product Picture
