Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Footwear BS 3144 Water Vapor Permeability Tester For Vamp
Specifications
Brand Name :
GESTER
Model Number :
GT-KC21-1
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/month
Delivery Time :
10-30days
Packaging Details :
wooden packaging
Usage :
water vapor permeability for vamp
Warranty :
12 Months
Product name :
Water Vapor Permeability Tester
Application :
shoe materials
Function :
use to testing footwear
Quality :
High,good
Advantage :
factory direct sale, fast delivery
Description

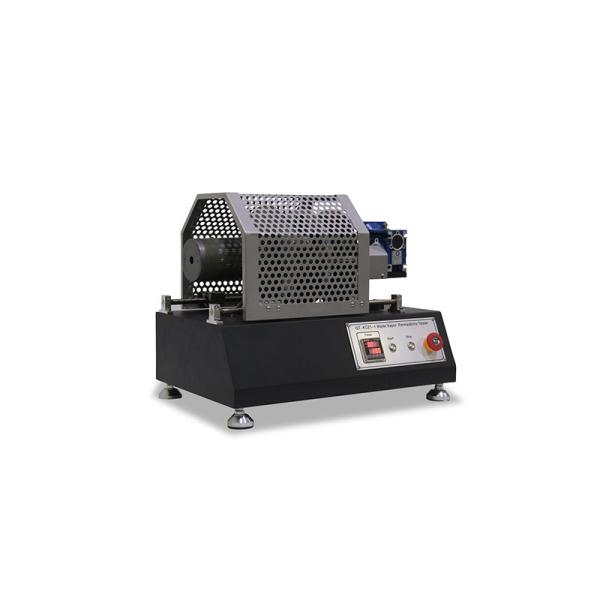

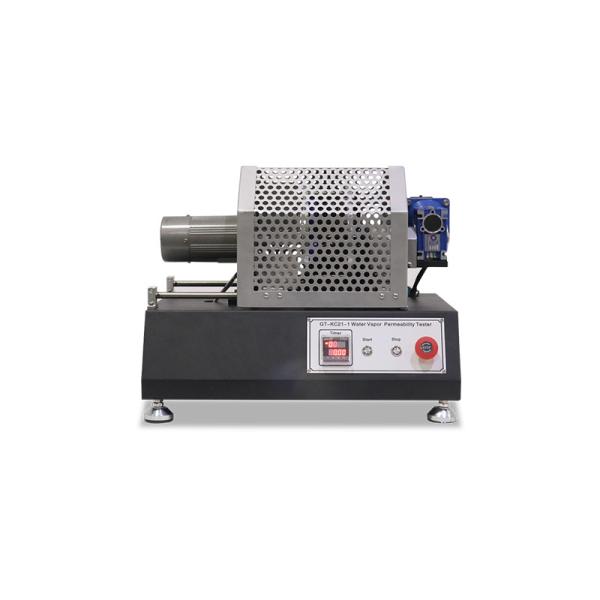

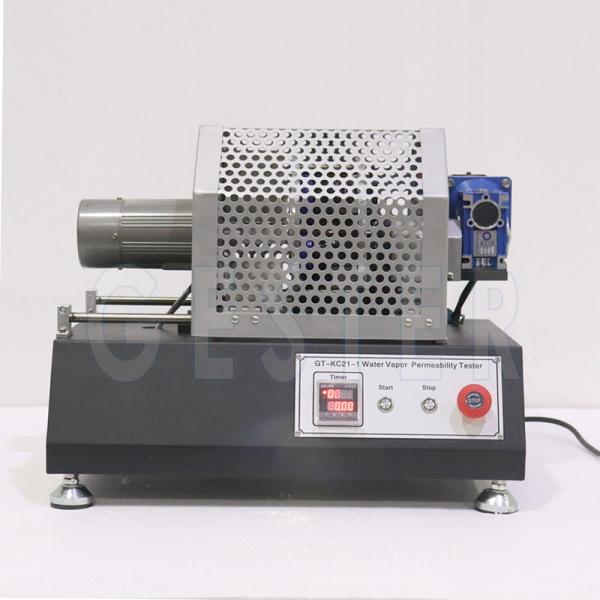

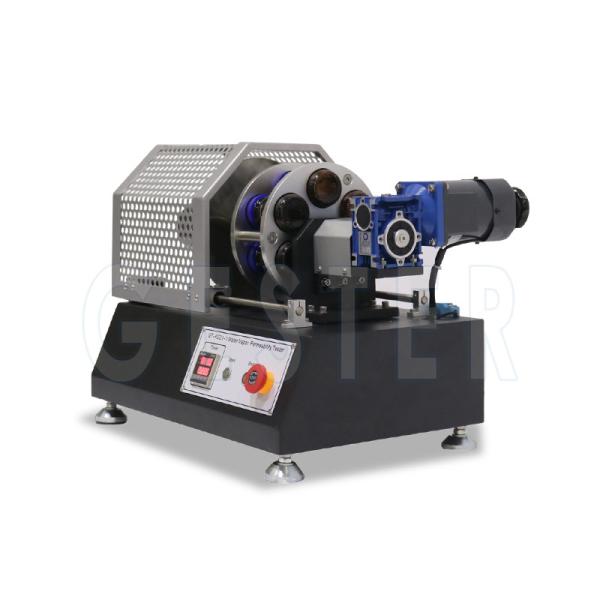

Footwear Testing Equipment Water Vapor Permeability Tester for vamp

Product Introduction

Water Vapor Permeability Tester is used to determine the water vapor permeability for vamp and upper shoe materials. Using in the conditioning room under the standard stipulated temperature (23 ± 2)℃ and humidity (50 ± 5)% RH.

Standards:

EN ISO 20344 Section 6.6.2, AS/NZS 2210.2 Section 6.6.2
GB/T 20991 Section 6.6.2 , EN 344-1 Section 5.13, BS 3144,
DIN 5333. SATRA TM172

Key Specifications

Model

GT-KC21-1

Testing bottle number

6pcs

Bottle mouth diameter

30mm

Bottles holder speed

75 ±5cpm

Fan blades

90 x 75 mm, 3 flat blades in planes inclined at 120° to each other

Fan rotate speed

(1400 ± 100) r/min

Specimen size

￠34mm

Power supply

1∮AC220V 50/60HZ

Dimensions

56X37X38cm

Weight

50kg

Shoes Material Water Vapor Permeability Tester Accessories (A):

Standard Accessories

6pcs

Testing Bottles

1pc

Power Line

Water Vapor Permeability Tester Accessories (B):

Option Accessories

Optional

GT-D10 Drying Oven

Optional

GT-KD20 Hydraulic Rocker Pressure Tester

(cutter: 70 ± 5 x 45 ± 5 mm,and ￠34mm)

Optional

GT-KC10A Bally Resistance Flexing Tester
