2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
2 Test Position GB/T 20991 Penetration Testing Machine For Shoe Lining
Specifications
Brand Name :
GESTER
Model Number :
GT-KA15
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 set/month
Delivery Time :
10-30 days
Packaging Details :
wooden packaging
Keyword :
Shoe Lining Leakproofness Tester
Service :
Perfect after-sales service
Name :
shoes lining seepage tester
Advantage :
factory direct sale
Type :
Footwear Testing Equipments
Warranty period :
1 year
Description

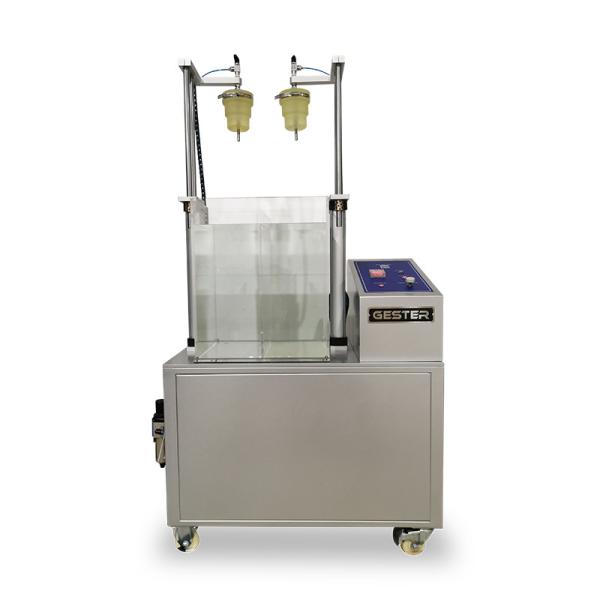

2 Test position Shoe Lining Leakproofness Tester

Product Introduction

Application:

Shoe Lining Leakproofness Tester is used to To fast determine the waterproof resistance of rubber shoes and shoe inner liner.

Standards:

GB/T 20991 section 5.7, ISO 20344 -2020 section 5.7,

AS/NZS 2210.2 section 5.7, ISO 8782-1, HG/T3664

Principle

Using pneumatic fixture and sealing plating parts to put sample into deep water, and full it with constant air pressure. If any seepage, it will produce bubbles and fixture will rise to surface automatically with sample when it reaches set test times. It could be used for production line and detect production completely to control it waterproof.

Key Specifications

Model

GT-KA15

Test position

2 pieces (4 pieces are also available)

Clamp surface length

220mm

Clamp lifting range

320mm

Air pressure

0-50KPa or specified

Timer

LED , 0-99999999

Power

1∮AC 220V 50/60HZ 3A

Dimensions

125x55x155 cm

Weight

140 kg

Accessories:

Standards accessories

Sealing clamp

1set

Power line

1pc

Optional accessories

GT-MA12A Air Compressor
