Specifications
Brand Name :
GESTER
Model Number :
GT-C17
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/month
Delivery Time :
10-30days
Packaging Details :
wooden packaging
Power :
AC220V
Usage :
snagging resistance of heavyweight fabrics
Product name :
ICI Mace Snag Tester
Color :
White/Black
Type :
Textile Testing Equipment
Warranty period :
1 year
Description

ICI Mace Snagging Resistance Tester

Product Introduction

Application:

ICI Mace Snag Tester applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc.

Standards:

ASTM D3939, GB 11407, JIS L 1058, VDA 230-220

Feature
  • Rotating cycle number can be pre-settable.
  • Stop automatically after getting the preset rotating cycles.
  • To ensure the testing accuracy and extend the service life, the nail hammer was made up of platinum steel.

  • Length of chain is adjustable.

Key Specifications

Model GT-C17A GT-C17B
Working position 2 4
Speed 60rpm±2rpm
Testing cylinder Φ82mm, Width: 210mm

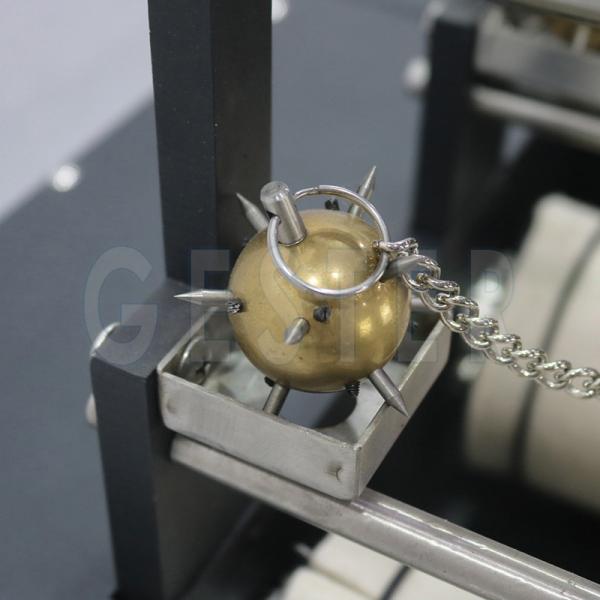

Mace ball Weight: 160±10g, 11 maces
Mace Length: 10±1mm, Tip radius: R0.13mm
Counter 0-99999
Felt Thickness: 3～3.2mm; Width: 165±1mm
Distance between nail hammer and guide rod 45±1mm
Power supply AC 220V 50/60HZ
Dimensions(LxWxH) 560 x 420 x 480mm 945x 420 x 480mm

Accessories:

Standard accessories 1pc/pos Felt sleeves (2pcs for GT-C17A; 4pcs for GT-C17B)
2pcs/pos Rubber rings (4pcs for GT-C17A; 8pcs for GT-C17B)
1pc Power line
Optional accessories Optional Tungsten carbide maces
Optional Standard photographs
Optional GT-C78 pilling assessment box
