Auto Pressure Air Forming PS PVC Plastic Thermoformer
Auto Pressure Air Forming PS PVC Plastic Thermoformer
Auto Pressure Air Forming PS PVC Plastic Thermoformer
Auto Pressure Air Forming PS PVC Plastic Thermoformer
Specifications
Brand Name :
GESTER
Model Number :
HEY06
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
200 sets/month
Delivery Time :
10-30 days
Packaging Details :
wooden packaging
Product name :
Automatic Pressure Air Forming Plastic PP PS PVC 3 Stations Large Thermoforming Making Machine
Keyword :
Automatic Pressure Air Forming Machine
Function :
Automation
Suitable material :
ps pp pet
certificate :
CE, ISO
Color :
Black and white
Power Supply :
3 phase 4 line 380V50Hz
Max. Power of Whole Machine (kw) :
150
Cutting Force (ton) :
40
Dry Speed (cycle/min) :
Dry Speed (cycle/min)
Price :
Factory Price
Description

Automatic Pressure Air Forming Plastic PP PS PVC 3 Stations

Large Thermoforming Making Machine

Product Introduction
This Pressure Thermoforming Machine adopts the method of laminating heating, adopts the technology of moving film punching, no secondary pollution, high sanitary level, high production safety coefficient, saving labor, the equipment set positive pressure/negative pressure/positive and negative pressure automatic molding, punching, cutting, manipulator grasp stack counting in a production line to complete continuously, automatic conveying products.

Feature
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Upper and down mould forming.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, four sections heating.
6. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage.Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Products be stacked downward.
9. Data memorization function.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.

Plastic Thermoforming Machine Key Specification

Forming Area 850x780mm
Max.Forming Depth 150mm
Sheet thickness 0.2-1.5mm
Work Efficiency Max. 30 cycles/ Min
Air Pressure 0.9mpa
Power Consumption 50-70kw/h
Max. Sheet Width 760mm
Suited Material PP, PS, PET, PVC
Total Max. Power 110
Overall size(LxWxH)mm 10040x2600x3200
Total Weight (T) 7

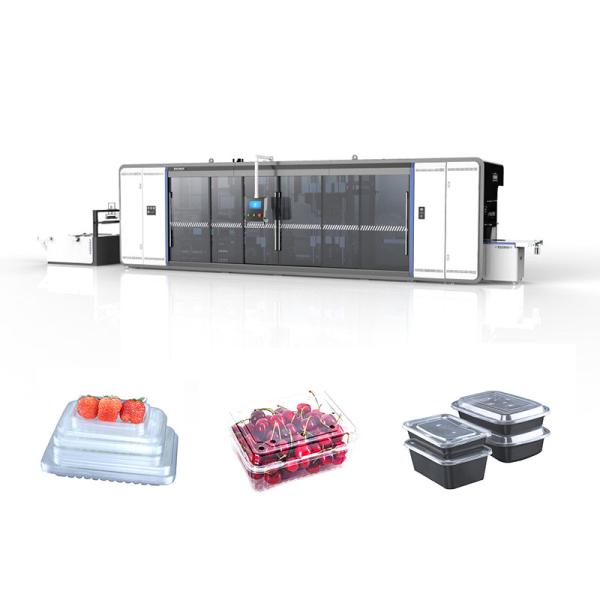

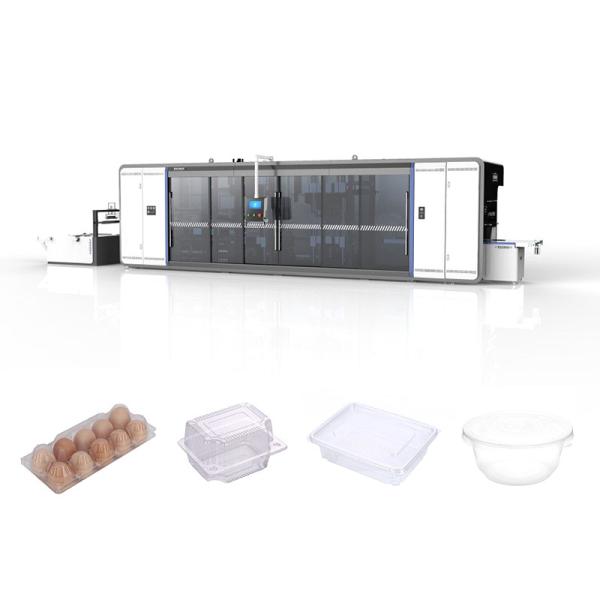

Product Image

Auto Pressure Air Forming PS PVC Plastic Thermoformer
