Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Packaging Details :
Wooden package
Supply Ability :
100 Set/Sets per Month
Price :
$200,000.00/sets 1-1 sets
Certification :
CE
MOQ :
1 set
Delivery Time :
30 days
Applicable Industries :
Manufacturing Plant
Showroom Location :
India
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 Year
Core Components :
Gearbox, Motor
Condition :
New
Automatic Grade :
Automatic
Voltage :
380v
Warranty :
1 Year
Name :
stenter machine
nominal working width :
1600-3200mm according to user requirements
chambers :
6.7.8.9
Port :
Shanghai
Description
ZYTT-Glue Stenter Setting machine
1. Product Application
This machine is used for back gluing, tentering, setting and drying of blankets, carpets, coral velvet fabrics, and cotton, polyester, blended fabrics and other fabrics.

2. Technical characteristics
Building block combination, according to different product and process requirements, the machine process can be combined arbitrarily.
Nominal width: 1600-3200mm according to user requirements.
Type: horizontal drying room, needle plate stenter type, 6-section, 7-section, 8-section, and 9-section oven (each section is 3 meters), modular combination.
Working temperature: 100-135℃ (steam); 100-180℃ (heat transfer oil) or natural gas, liquefied gas, coal gas, etc.
AC frequency conversion synchronous transmission, mechanical speed: 10-50m/min according to the process setting.
The upper and lower overfeeding rollers and the overfeeding of the upper needle brush can accurately meet the shrinkage requirements of different processes.
The drying room adopts multi-wing circulating fan and rolled aluminum fin radiator, which has high thermal efficiency and uniform indoor temperature.
The frame adopts channel steel profile, which is connected into a separate circulation cavity, and the top is equipped with an anti-drip device.

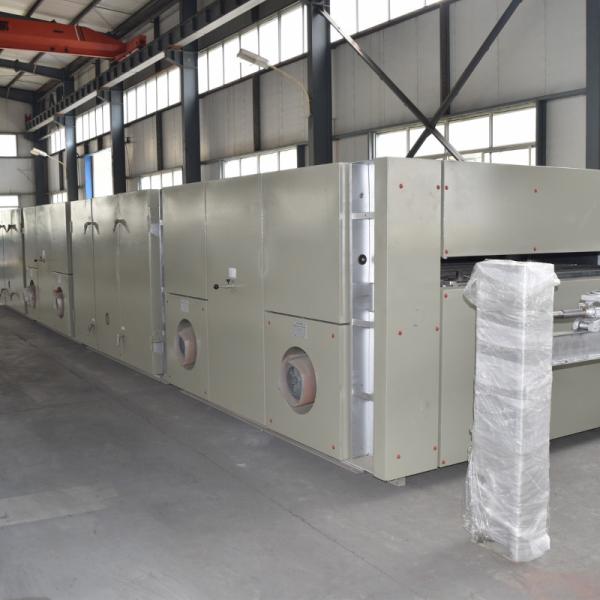

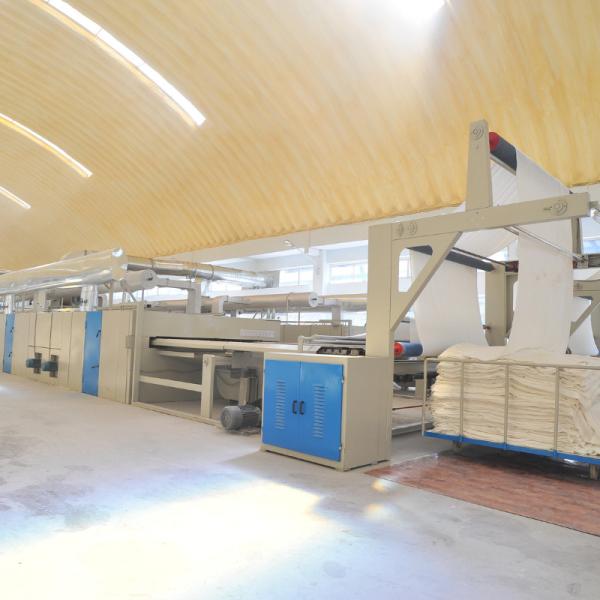

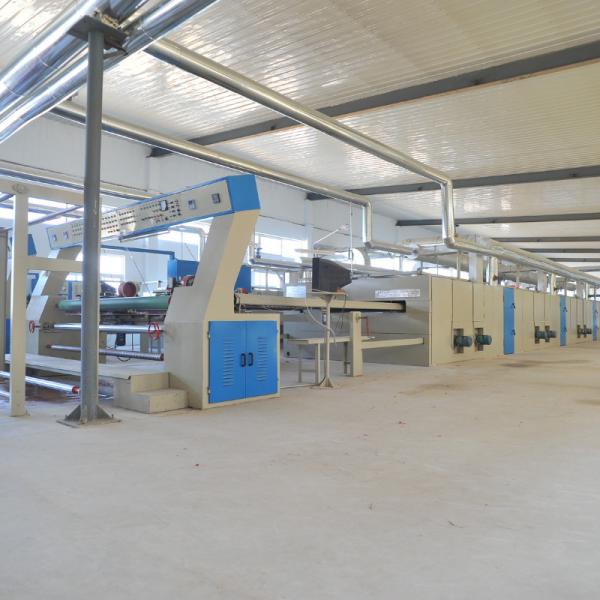

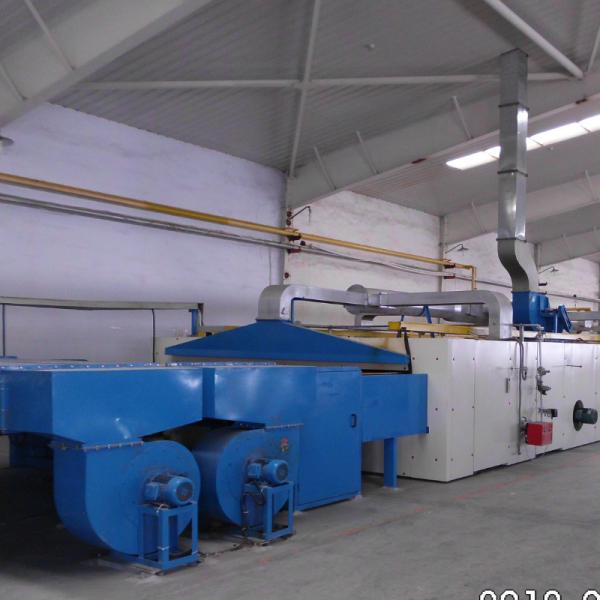

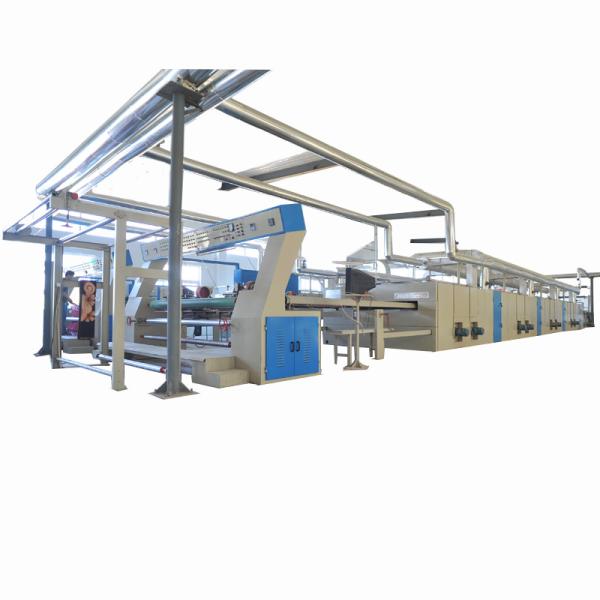

Machine Display
fabric stenter machine 1600-3200mm Glue Stenter Setting machine
fabric stenter machine 1600-3200mm Glue Stenter Setting machine
