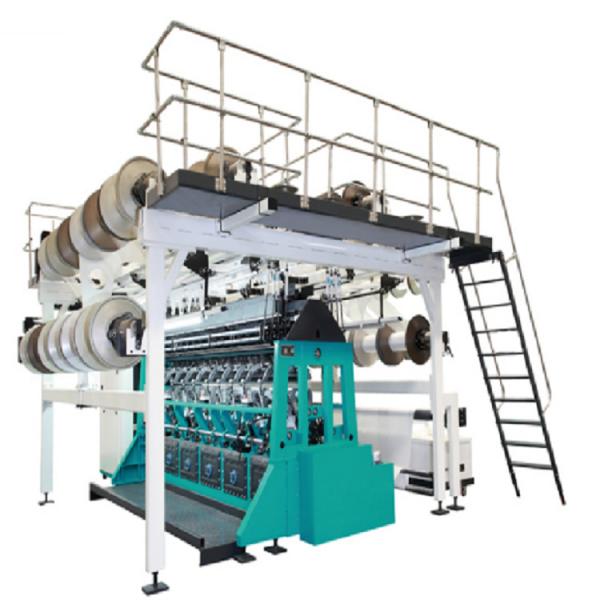

ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Packaging Details :
Wooden package
Supply Ability :
100 Set/Sets per Month
Price :
$125,000.00/sets 1-4 sets
Certification :
CE
MOQ :
1 set
Delivery Time :
30 days
Model Number :
RD7
Applicable Industries :
Manufacturing Plant, Textile mill
Condition :
New
Product Type :
shoe upper, Raschel, three-layer spacer fabrics, seat fabrics, shoes fabrics
Type :
RASCHEL
Production Capacity :
98%
Knitting Style :
Warp
Knitting Method :
Double
Computerized :
Yes
Weight :
12000 KG
Dimension(L*W*H) :
5900*5500*3300
Warranty :
1 Year
Key Selling Points :
Automatic
Gauge :
E16 E18 E22 E24 E26 E28
Knitting width :
90'' 100'' 110'' 138''
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2022
Warranty of core components :
1 Year
Core Components :
Pressure vessel, Motor, Bearing, Gear, PLC, Pump, Engine, Gearbox, Other
Speed :
800course/minute
Distance between Knocking-over Bar :
3-12mm
Pressure of Pneumatic Source :
5 Bars 6 Bars 7 Bars
Needle type :
Latch Needle
Port :
ningbo shanghai qingdao
Description
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
Features
Adopt oil immersed cam and eccentric linkage bar system
looping part adopt four-bar mechanism
short stoke latch needles
EBA let-off
The high performance machine is specialized in producing thin three-layer spacer fabrics(such as shoes fabrics, garment linings, seat fabrics, automotive fabrics, etc.),ultra-fine high-density short-pile fabrics fitter consumables, etc.
Machine Specification & Advantages
Needle type Latch Needle
Gauge E16 E18 E22 E24 E26 E28
Number of bars 5bars 6bars 7bars
Distance between knocking-over bars 3-12mm
Working width 90‘’ 100‘’ 110‘’ 138‘’
Max speed 800rmp

Machine Application
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
ZYTT-RD7 Air mesh and spacer fabric double needle bed raschel machine
