Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ZYTT
Packaging Details :
steel pallet
Supply Ability :
100 Set/Sets per Month
Price :
$80,000.00/sets 1-4 sets
Certification :
CE
MOQ :
1 set
Delivery Time :
30 days
Applicable Industries :
Manufacturing Plant, Restaurant, Printing Shops
Showroom Location :
India
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Condition :
New
Automatic Grade :
Automatic
Voltage :
380v
Power :
23-84KW
Dimension(L*W*H) :
13860*2980*2650
Weight :
1000 KG
Warranty :
1 Year
Production Capacity :
Consulting the seller
Cloth load of machine :
50,100,250,500,1000kg
Capacity :
50,100,250,500,1000kg
Max working temperature :
140℃
Maximum working pressure :
3.8Mpa
Heating rate :
20-130℃ average 5℃/ min
Cooling rate :
130-80℃ average 2.5℃/ min
Bath ratio :
1:4-8
Port :
shanghai
Description

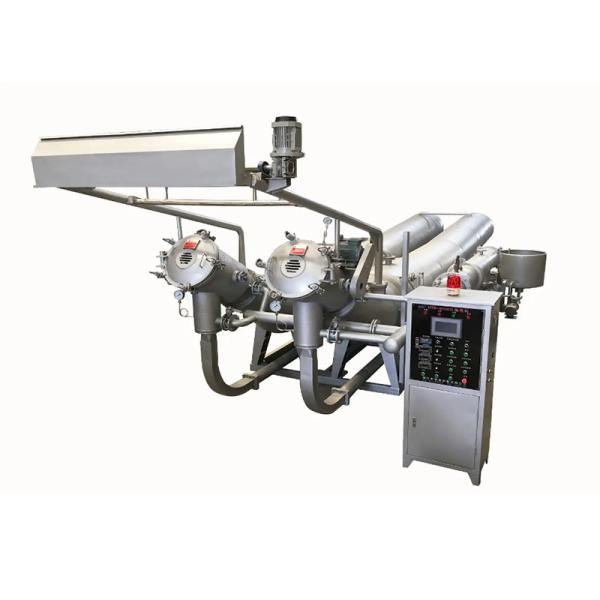

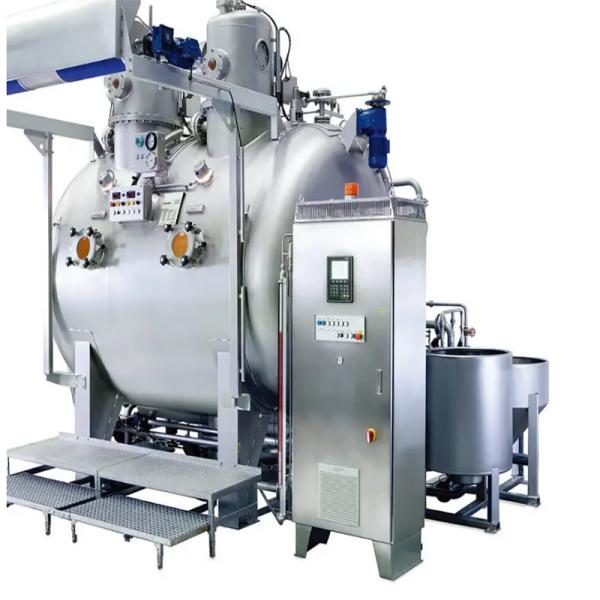

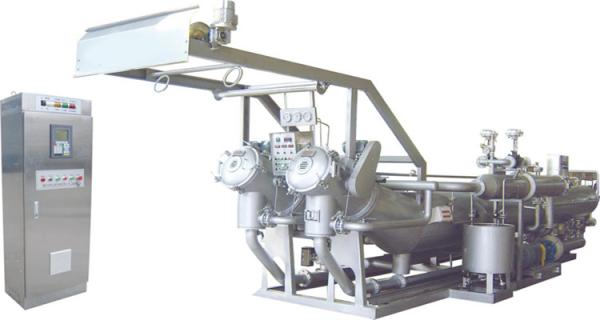

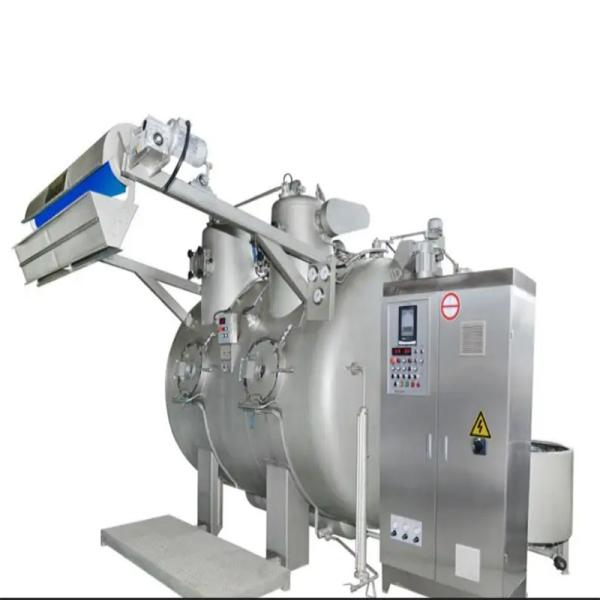

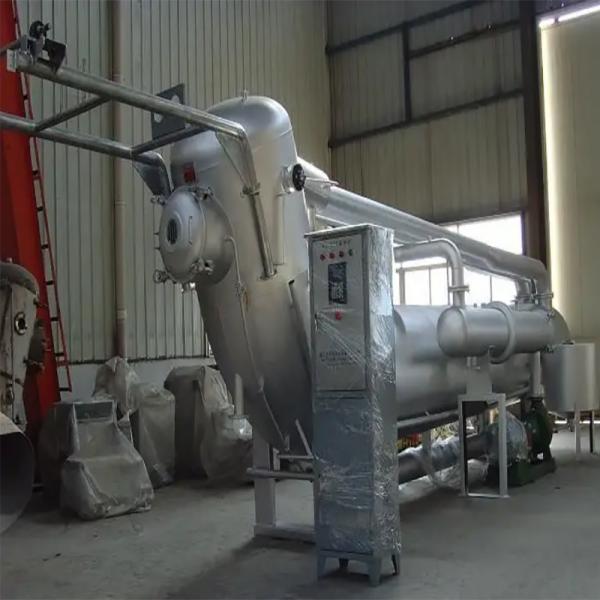

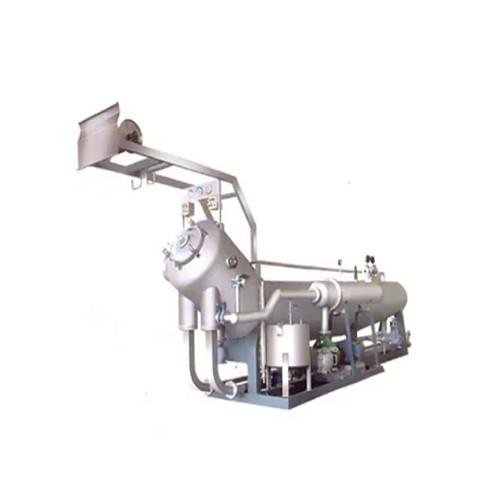

HTHP Fabric Dyeing Machine
Brief Introduction
Advanced multi-functional high pressure overflow dyeing machine, mainly suitable for natural or synthetic fiber, blended fiber(T/C, T/R, T/W) and other plain woven materials, as well as high value-added superfine fiber, composite fiber dyeing and pretreatment.
Low dyeing tension: cloth guide roller equipped with frequency conversion motor can assist cloth movement.
High fabric relaxation and uniform dyeing: The master container (double jacket type) winch reel and nozzle are perfectly combined to achieve a smooth fabric flow for any type of woven item or material. Its shape and double jacket structure can effectively avoid uneven dyeing and friction marks.
Machine Specification & Advantages
Capacity
50kg 100kg 250kg 500kg 1000kg
Maximum Working temperature
140℃
Maximum working pressure
3.8Mpa
Heating rate
20-130℃ average 5℃/ min
Cooling rate
130-80℃ average 2.5℃/ min
Bath ratio
1:4－8
Machine Application
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample

The body and all parts in contact with the dye are made of high corrosion resistant stainless steel.
High efficiency stainless steel centrifugal pump, main pump frequency conversion soft start control.
The lifting roller is driven by a motor controlled by a frequency converter.
Equipped with humidity control function of pneumatic control heating, cooling valve.
Fuselage pressurization and decompression system.
High efficiency tubular heat exchanger.
Inlet, discharge and overflow clean pneumatic valves.
The liquid level indicator is equipped with magnetic control water level induction control device.
Pigment barrel is equipped with filling pump, valve and stirring function.
Automatic main control electric box and controller
Company Profile
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Our Partner
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Certificates & Exhibitions
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Packaging & Logistics
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
Hthp Fabric Dyeing Machine Manufacturers Laboratory Polyester Sample
