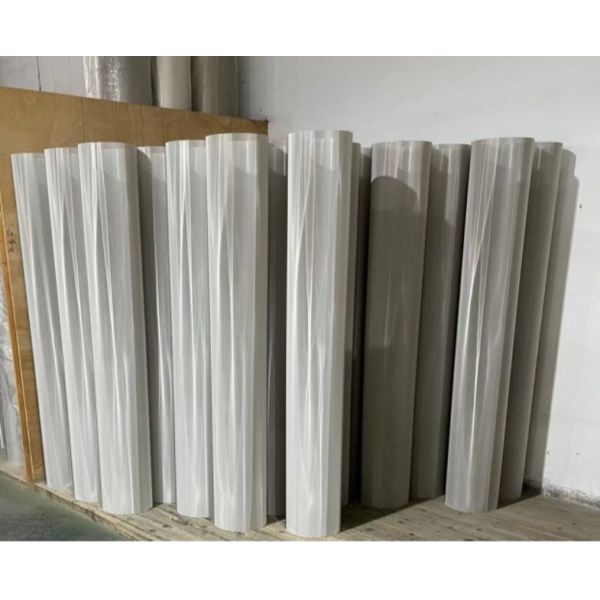

60/70/80/100/125/135/155M Mesh 640mm 819mm Rotary Nickel Cylinder Printing Screen
60/70/80/100/125/135/155M Mesh 640mm 819mm Rotary Nickel Cylinder Printing Screen
Specifications
Brand Name :
LIANGRU
Model Number :
100M
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T,L/C or others
Supply Ability :
sufficient supply
Delivery Time :
15-25days
Packaging Details :
plywood cases or as you required
Thickness(μm) :
Thickness(μm)
type :
Rotary Screen Printing
feature :
High Strength
packaged :
standard export package
Hole Diameter :
108
mesh :
60/70/80/100/125/135/155M
function :
printing
Hole diameter :
74-105
Description

60/70/80/100/125/135/155M Mesh 640mm 819mm Rotary Nickel Cylinder Printing Screen

Repeat(mm) 640 819 914
Mesh Thickness(μm) Open area(%) Hole diameter
60 115-120 18-20 161
70 110-115 16-18 131
80 110-115 16-18 105
100 105-110 15-17 74
125 100-105 14-16 79
135 100-105 13-15 92
155 100-105 12-13 60

Advantage of the products:

Our newest screen is characterised by a random distribution of conical holes. This significantly reduces the moiré effect whilst printing, which means less need for trials and fewer remakes and rejects. It also offers more freedom in design possibilities, for example through its ability to produce realistic weaving and tweed effects.

we also offers a wide range of additional products for both conventional and digital engraving methods. Our production programme contains endrings, chemicals and emulsions for rotary screens that are developed to achieve the highest quality results.

What is rotary screen printing?

In rotary printing, the web travels at a consistent speed between the screen and a steel or rubber impression roller immediately below the screen. (The impression roller serves the same function as the press bed on a flatbed press.) As the web passes through the rotary unit, the screen spins at a rate that identically matches the speed of substrate movement.

Rotary screen printing is so named because it uses a cylindrical screen that rotates in a fixed position rather than a flat screen that is raised and lowered over the same print location. Rotary presses place the squeegee within the screen. These machines are designed for roll-to-roll (web) printing on flexible materials ranging from narrow web films to wide-format roll textiles.

Delivery time: within 10 to 25 days

Package:plywood cases or as you required
