Automatic Blowing System Fabric Testing Equipment Touch Screen Feather / Down Filling Power Tester
Automatic Blowing System Fabric Testing Equipment Touch Screen Feather / Down Filling Power Tester
Automatic Blowing System Fabric Testing Equipment Touch Screen Feather / Down Filling Power Tester
Automatic Blowing System Fabric Testing Equipment Touch Screen Feather / Down Filling Power Tester
Automatic Blowing System Fabric Testing Equipment Touch Screen Feather / Down Filling Power Tester
Automatic Blowing System Fabric Testing Equipment Touch Screen Feather / Down Filling Power Tester
Specifications
Brand Name :
TESTEX
Model Number :
TF135
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,T/T,Western Union,MoneyGram, In Cash
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Standard exporting wooden case
Measuring speed :
520±20 mm/min
Measuring height :
750 mm
Measuring accuracy :
0.1 mm
Graduated cylinder internal diameter :
289±1 mm
Plunger and Measuring Rod :
diameter 285 mm, weight 94.3g
Air velocity :
(310±50) L/min
Standards :
BSEN12130, JISL1903,FZ/T80001, GB/T14272-2011, GB/T10288, IDFB－FP
Weight :
270 kg – 2 wooden cases
Description

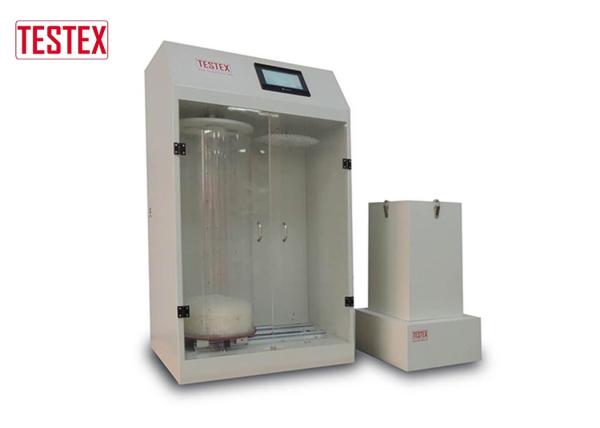

Touch Screen Feather / Down Filling Power Tester With Automatic Blowing System And 0.1mm Accuracy

Application

Feather & Down Filling Power Tester, is to determine the filling power (massic volume) of feather and down.

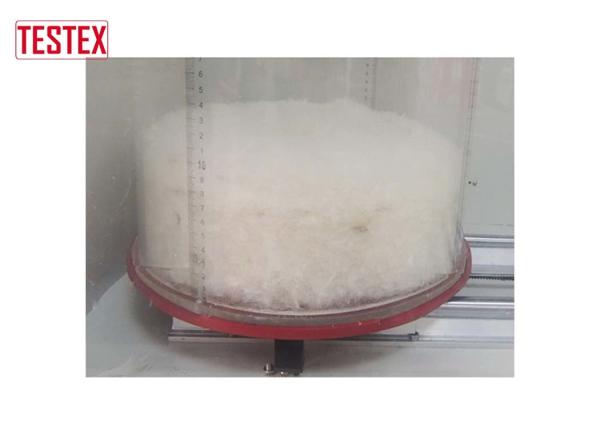

Pressure on the sample by dropping the platen is applied to the filling material at a constant speed and the level of the platen is noted after a stipulated time. The massic volume is calculated through the height and the known diameter of the graduated cylinder.

Functions

  • Automatic blowing system
  • Individual filter system design
  • DC gear motor driving
  • SCM controlling
  • Touch screen operation
  • Automatically lower done the platen and display the height

Specifications

  • Measuring speed 520±20 mm/min
  • Measuring height 750 mm
  • Measuring accuracy 0.1 mm
  • Graduated cylinder internal diameter 289±1 mm
  • Plunger and Measuring Rod diameter 285 mm, weight 94.3g
  • Air velocity (310±50) L/min
  • Equipped with printer

Standards

BSEN12130, JISL1903,FZ/T80001, GB/T14272-2011, GB/T10288, IDFB－FP

Power

220 V 50 Hz 100 W

Weight

270 kg – 2 wooden cases

Dimensions

880 x 740 x 1460 mm

500 x 490 x 1070 mm (L x W x H)
