3 Air Circulating Fan 160 ~ 360 mm Batch Working with Pin Frame Laboratory Tenter
3 Air Circulating Fan 160 ~ 360 mm Batch Working with Pin Frame Laboratory Tenter
Specifications
Brand Name :
TESTEX
Model Number :
TD620
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,T/T,Western Union,MoneyGram, In Cash
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Standard exporting wooden case
Weight :
200 Kg
Warranty :
1 year
Port :
SHENZHEN
Power :
380 V 50 Hz 19 kW
Moving speed :
0 ~ 6 m/min
Dimensions :
2500 x 900 x 1500mm (L x W x H)
Description

3 Air Circulating Fan 160 ~ 360 mm Batch Working with Pin Frame Laboratory Tenter

Application

The Laboratory Tenter could be a versatile continuous pin chain sort hot air appliance. It's widely used for methods wherever an explicit sample length is needed during a continuous process. This mini-tenter is intended to simulate the options of the assembly scale frame.

Specifications

Moving speed

0 ~ 6 m/min

The electric heating power

19kw

temperature

20 ~ 250oC

Batch working with pin frame (length and width are adjustable)

160 ~ 360 mm

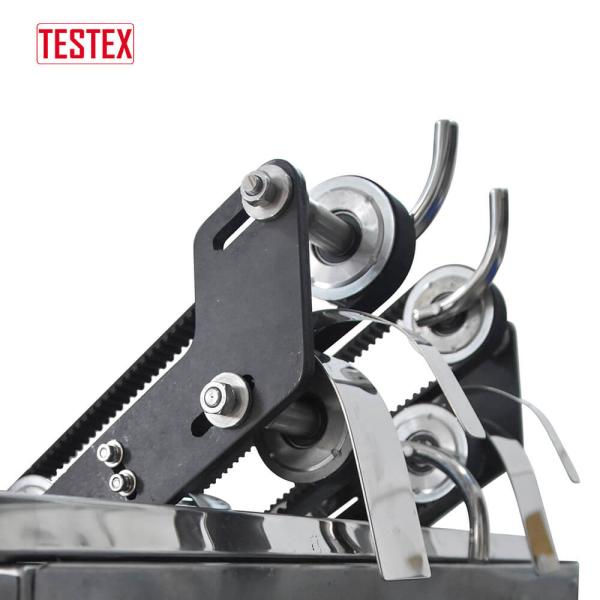

Continuous working with endless pin chain

3 sets of air circulating fan ensures high drying and thermosoling performance

Equipped with cloth pressing wheel in the feeding side, and pin-up device to lead fabric to reserve box at the end

Power

380 V 50 Hz 19 kW

Weight

600 Kg

Dimensions

2500 x 900 x 1500mm (L x W x H)
