Specifications
Usageenvironment :
Indoor and outdoor
Model Number :
WF-1000S60-4K
Certification :
ISO
Portability :
Compact and easy to transport
Type :
Safety Restraint System
Connector Type :
Standard aviation connectors
Waterresistance :
IP54 rated
Material :
High-grade aluminum and reinforced plastic
Warrantyperiod :
1years
Durability :
Waterproof and dustproof (IP65 rated)
Powersupply :
Continuous power via tether cable
Mounting Options :
Magnetic and screw mount compatible
Safety Features :
Overcurrent and surge protection
Installation :
Tool-free quick installation
Operatingtemperature :
-20°C to 50°C
Datatransmission :
High-speed data transfer up to 1 Gbps
Brand Name :
Kitefly
MOQ :
1~5unit
Price :
negotiable
Payment Terms :
T/T
Place of Origin :
china
Delivery Time :
1~4week
Supply Ability :
1~5unit
Description

Key Specifications

Model

WF-1000S60-4K

Compatible Ground

with ≥4000W output at 800–1000Vdc; consult team for system matching

Input Voltage

800–1000Vdc (rated input: 900Vdc)

Output Voltage

60 ±0.6Vdc (regulated; range 57–60.6Vdc)

Output Current

67A rated, 75A maximum

Rated Power

4000W

Efficiency

≥97% (at 750Vdc input, half load)

Voltage Regulation Accuracy

±1%

Output Ripple & Noise

≤±2%Vo (20MHz bandwidth limit)

Dynamic Response Recovery

≤2ms (25%–50%–25% load step)

IP Rating

IP54 (certified); aluminum enclosure with three-proof PCB coating

Operating Temperature

-40°C to +50°C (forced air cooling)

Storage Temperature

-40°C to +80°C

Maximum Altitude

2000m

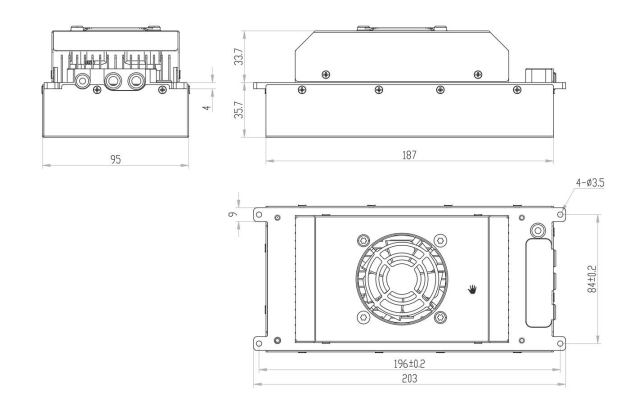

Dimensions

187 × 95 × 70mm (L × W × H, heat sink)

Weight

1000g

MTBF

≥100,000 hours

Parallel Units (max)

≤8 units

Warranty

1 Year

Availability

In Stock (2–3 weeks if out of stock)
