Specifications
Usageenvironment :
Indoor and outdoor
Mounting Options :
Adjustable clamps and brackets
Installation :
Tool-free quick installation
Weather Resistance :
Waterproof and dustproof (IP67 rated)
Model Number :
WF-1000S60-8K
Certification :
ISO
Mountingoptions :
Multiple mounting brackets included
Datatransmission :
High-speed data transfer through tether cable
Safety Features :
Overcurrent and surge protection
Material :
High-grade aluminum and reinforced polymers
Safetyfeatures :
Overcurrent and surge protection
Installationease :
Tool-free quick installation
Operatingtemperaturerange :
-20°C to 50°C
Coloroptions :
Available in black, white, and camouflage
Connector Type :
Standard drone power connectors
Manufacturer :
Safety Solutions Inc.
Powersupply :
Supports continuous power delivery via tether
Brand Name :
Kitefly
MOQ :
1~5unit
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Place of Origin :
China
Delivery Time :
1~4week
Supply Ability :
1~5unit
Description
Key Specifications

Model

WF-1000S60-8K

Compatible Ground Stations

delivering 800-1000Vdc input for 1000V-class tethered UAV systems; confirm system matching before order

Input Voltage

800-1000Vdc (for 1000V-class tethered power architecture)

Output Voltage

60Vdc rated; 57-60.5Vdc output range

Output Current

134A rated, 150A maximum

Rated Power

8KW

Efficiency

>=97%

Voltage Regulation Accuracy

+/-1%

Source / Load Regulation

+/-1% / +/-1%

Output Ripple & Noise

<=+/-2%Vo (20MHz bandwidth limit)

Dynamic Response Recovery

<=2ms

Power-On Delay

<=5s at rated input

IP Rating

IP54

Operating Temperature

-40C to +50C (self-contained air cooling)

Storage Temperature

-40C to +80C

Relative Humidity

<=95% RH, no condensation (40C +/-2C)

Maximum Altitude

0-2000m

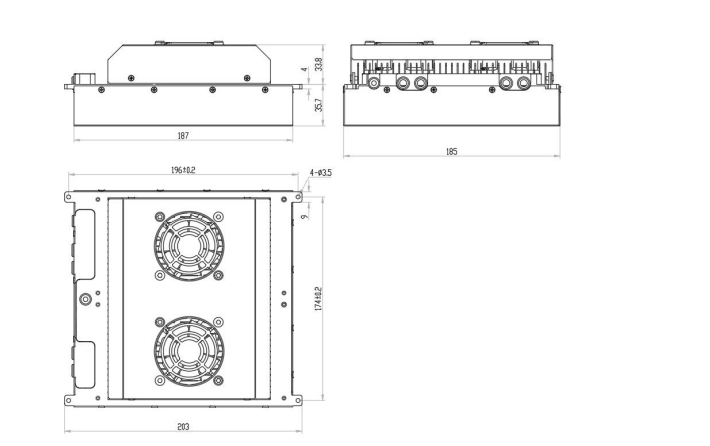

Dimensions

187 x 185 x 70mm shell size (+/-1mm)

Weight

About 2.2-2.3kg

MTBF

>=100,000 hours

Warranty

1 Year

Availability

Build-to-order or limited stock; confirm lead time with sales
