Specifications
Connector Type :
Standardized quick-connect plugs
Connectortype :
Standard aviation connectors
Productname :
Tethered Drone Accessories
Safetyfeatures :
Overcurrent and surge protection
Mounting Options :
Multiple mounting brackets included
Mountingoptions :
Multiple mounting brackets included
Operatingtemperature :
-20°C to 50°C
Warranty :
12 months manufacturer warranty
Mountingtype :
Quick-release mounting system
Waterresistance :
IP54 rated
Certification :
ISO
Cable Length :
Up to100 meters
Model Number :
WF-800S50-4K
Compatibility :
Universal for tethered drones
Brand Name :
Kitefly
MOQ :
1~5unit
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Place of Origin :
china
Delivery Time :
1~4week
Supply Ability :
1~5unit
Description

Key Specifications

Model

WF-800S50-4K

Compatible Ground Stations

with ≥4000W output (e.g. G7, NG7); higher-output stations compatible — consult team for system matching

Input Voltage

680–800Vdc (rated input: 750Vdc)

Output Voltage

50 ±0.5Vdc (regulated; range 47–50.5Vdc)

Output Current

80A rated, 88A maximum

Rated Power

4000W

Efficiency

≥97% (at 750Vdc input, half load)

Voltage Regulation Accuracy

±1%

Output Ripple & Noise

≤±2%Vo (20MHz bandwidth limit)

Dynamic Response Recovery

≤2ms (25%–50%–25% load step)

IP Rating

IP54 (certified); aluminum enclosure with three-proof PCB coating

Operating Temperature

-40°C to +50°C (forced air cooling)

Storage Temperature

-40°C to +80°C

Maximum Altitude

2000m

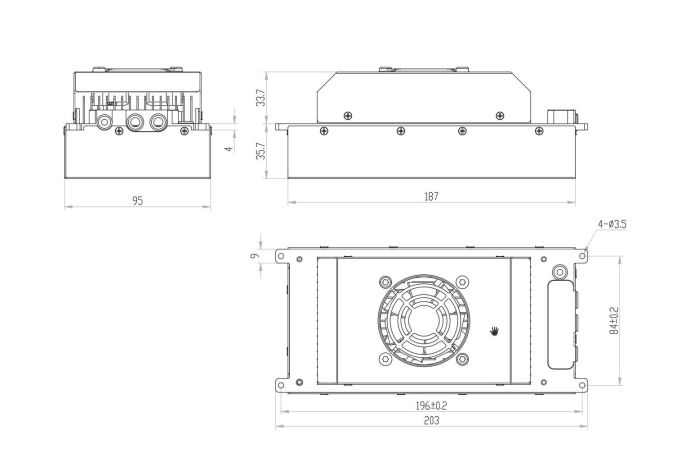

Dimensions

197 × 95 × 75mm (L × W × H)

Weight

1000g

MTBF

≥100,000 hours

Parallel Units (max)

≤8 units

Warranty

1 Year

Availability

In Stock (2–3 weeks if out of stock)
