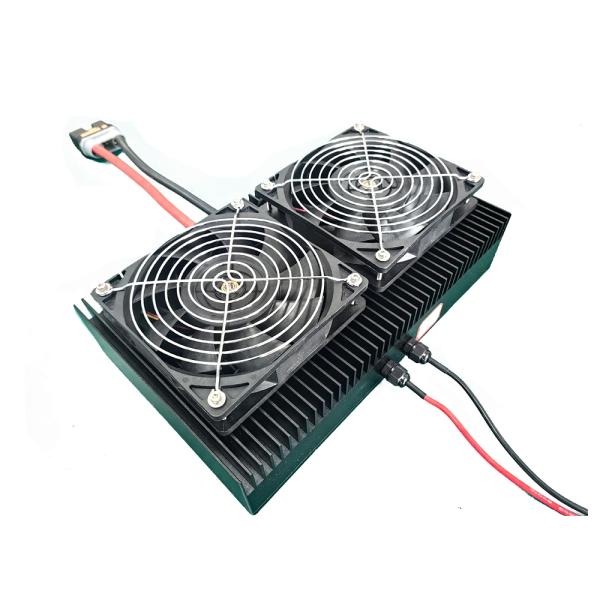

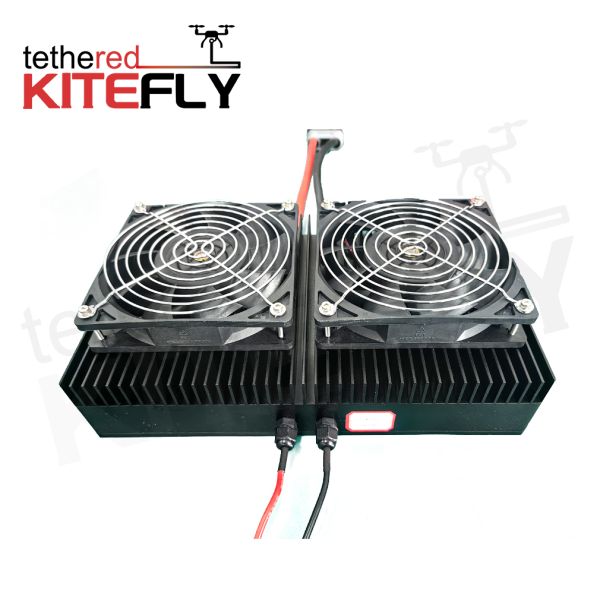

Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Tethered System Onboard Power Supply Input 90-405Vdc A9(400S48,3.2kg)
Specifications
Installation :
Tool-free quick installation
Datatransmission :
High-speed fiber optic cable support
Material :
High-grade aluminum and reinforced plastic
Temperaturerange :
-20°C to 60°C
Mounting Options :
Multiple mounting brackets included
Mountingtype :
Standard drone mounting bracket
Manufacturer :
Safety Solutions Inc.
Mountingoptions :
Tripod and wall mount included
Operatingtemperaturerange :
-20°C to 50°C
Connectortype :
Standard USB-C and proprietary drone connectors
Certification :
ISO
Weatherresistance :
IP65 rated for dust and water resistance
Type :
Safety Restraint System
Brand Name :
Kitefly
MOQ :
1~5unit
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Place of Origin :
china
Delivery Time :
1~4week
Supply Ability :
1~5unit
Model Number :
A9(400S48,3.2kg)
Description

Key Specifications

Parameter

Value

Model

AF-400S48-9K

Compatible Systems

G15, G30

Input Voltage

390–405Vdc (ideal range)

Output Voltage

47–50Vdc (automatic load compensation)

Rated Power

9kW

Peak Power

10kW (transient)

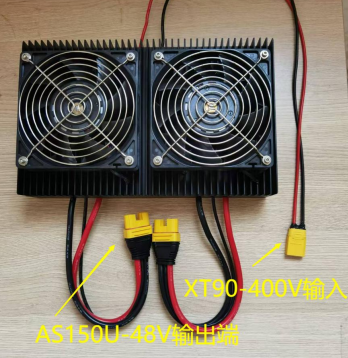

Input Connector

XT90

Output Connector

AS150 (Black)

Dimensions

168 × 271 × 56mm body (84mm total height incl. heatsink)

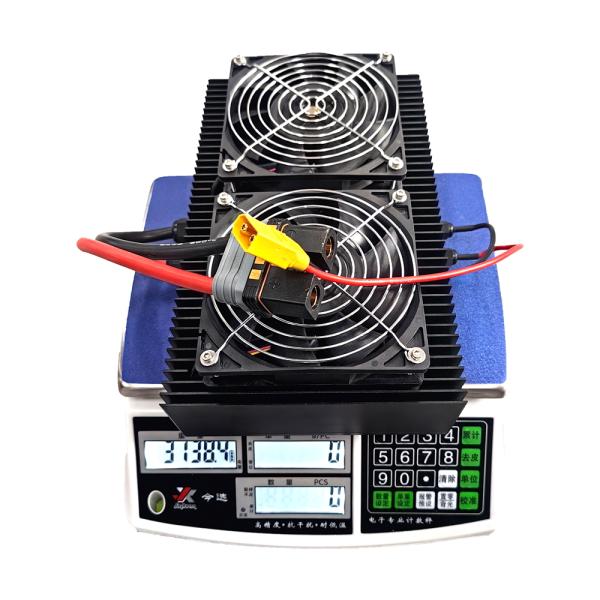

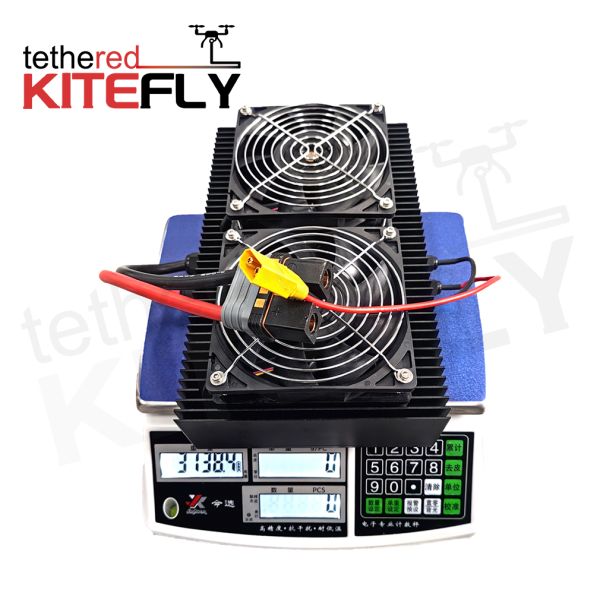

Weight

3.3kg ± 0.2kg

Heat Dissipation

Air-cooled (dual fan)

Warranty

1 Year

Availability

In Stock (2–3 weeks if out of stock)
