Onboard Power Supply A1.5 (AF-400S24-1.5K) – 1500W Tethered UAV Power Module

The Kitefly AF-400S24-1.5K is a high-efficiency onboard power supply unit designed specifically for tethered drone systems. It converts high-voltage ground power (360–420Vdc) to stable drone-compatible output (22.5–26.25Vdc) at up to 1500W continuous power, enabling unlimited flight endurance for professional UAV operations.

Key Specifications

· Model: AF-400S24-1.5K

· Input Voltage: 360–420Vdc

· Output Voltage: 22.5–26.25Vdc (fixed ratio 16:1)

· Max Power: 1500W

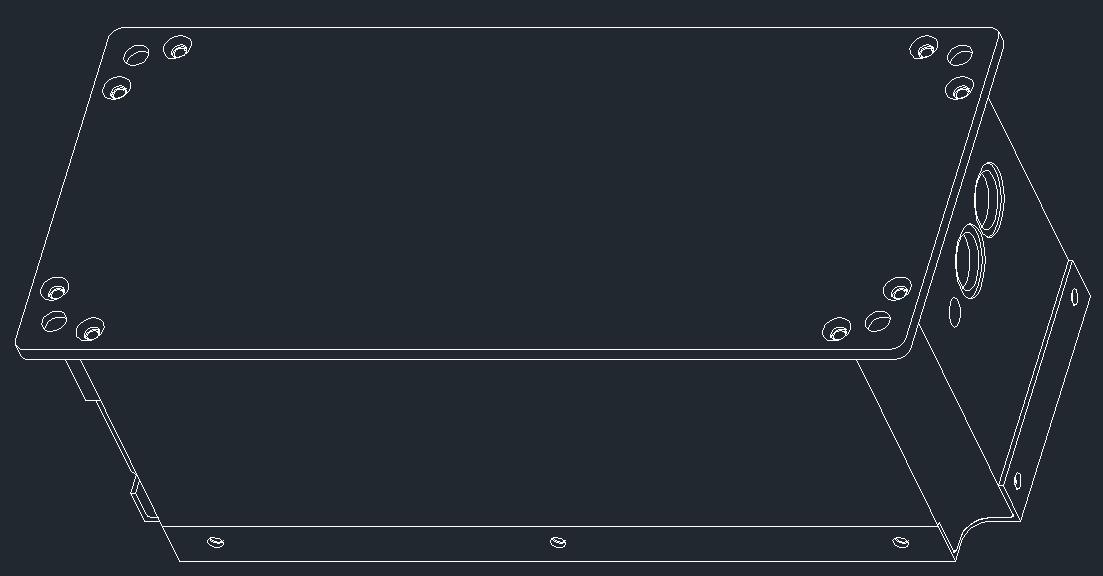

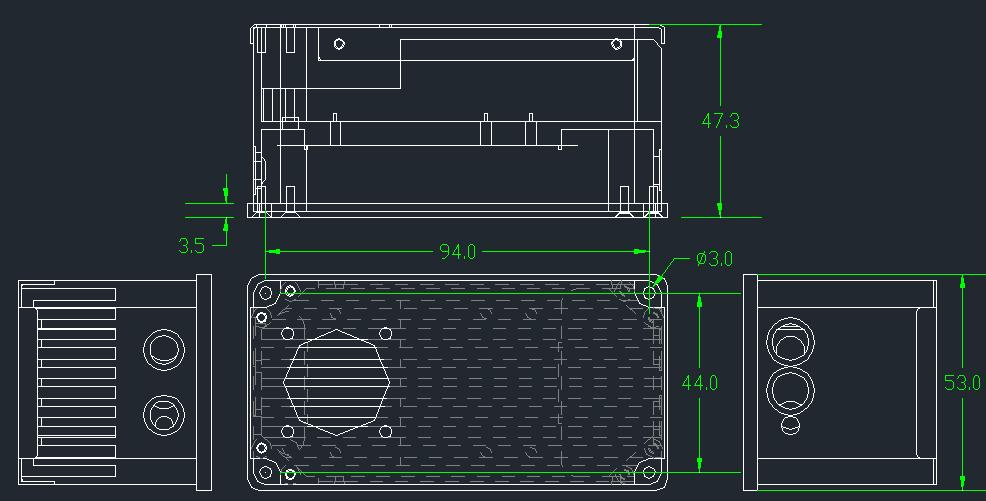

· Dimensions: 103 × 53 × 50mm (L × W × H)

· Weight: 380g ± 10g

· Warranty: 1 Year

· MOQ: 1 unit | Availability: In Stock (2–3 weeks lead time if out of stock)

Why Choose the A1.5 for Your Tethered Drone System?

Designed for missions where battery endurance is not an option — border surveillance, oil & gas infrastructure inspection, public safety monitoring, and long-duration aerial photography. The A1.5's compact 380g form factor makes it suitable for lightweight UAV builds without sacrificing power output.

Frequently Asked Questions

Q: Is the A1.5 compatible with my existing tethered system?

A: The AF-400S24-1.5K is designed to work with Kitefly tethered power systems. Please contact us to confirm compatibility with your specific ground station setup.

Q: Why does the drone need to take off with a fully charged battery?

A: For safety reasons, the drone must carry a fully charged battery at all times during tethered flight. In the event of a ground power interruption, the drone automatically switches to battery power, allowing for a safe emergency landing. The tethered power supply is not a replacement for the onboard battery — it works alongside it.

Q: Can I exceed 1500W by connecting multiple A1.5 units in parallel?

A: No. The A1.5 is rated at a maximum of 1500W and should not be used beyond this limit. If your application requires higher power output, Kitefly offers other models in the series — please contact us to find the right match for your payload requirements.

Q: What is the warranty coverage?

A: All Kitefly onboard power supplies come with a 1-year warranty covering manufacturing defects under normal operating conditions.

Q: What is the lead time and availability?

A: The A1.5 is available in stock for immediate shipment. If current stock is insufficient for your order, lead time is 2–3 weeks. Contact us for real-time stock status and bulk order pricing.

Q: What are typical deployment environments?

A: The A1.5 is suited for demanding field conditions including border security, critical infrastructure inspection, and public safety operations. For high-temperature environments such as the Middle East or India, we recommend consulting our technical team to confirm thermal compatibility with your specific installation.
