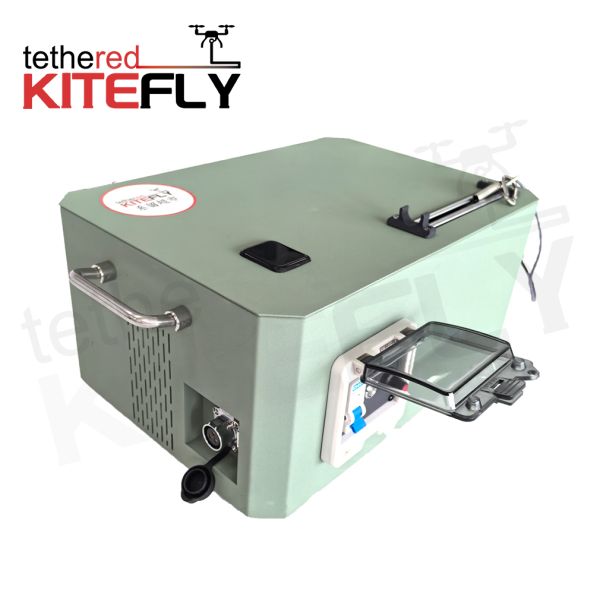

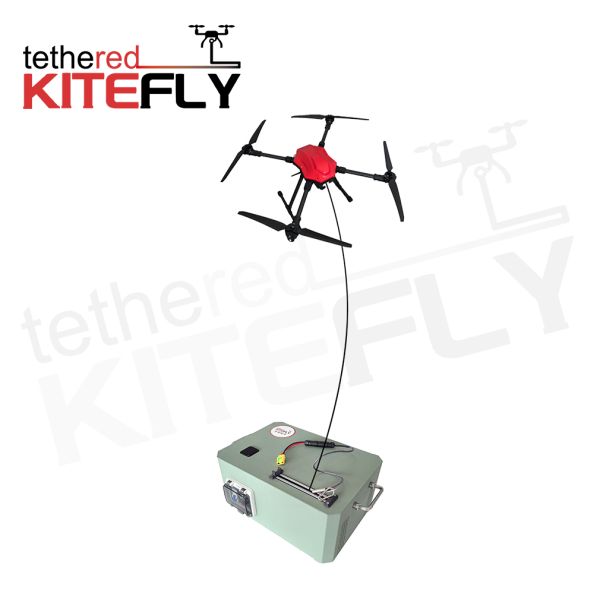

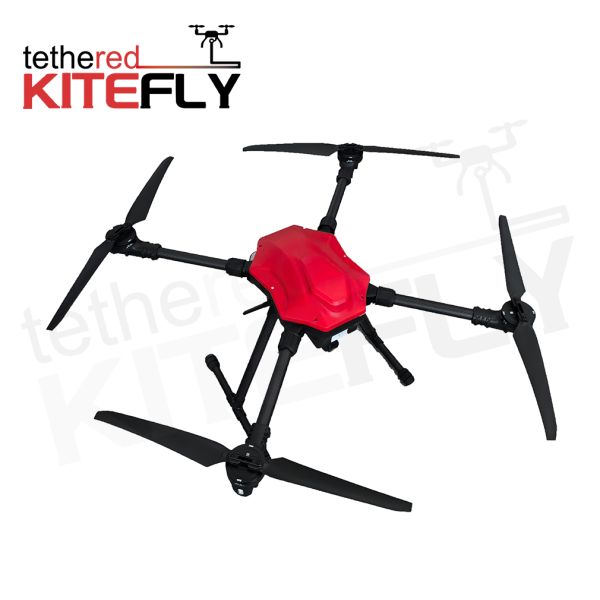

Aerospace-Grade Aluminum Alloy M40 Tethered Lighting System IP54
Aerospace-Grade Aluminum Alloy M40 Tethered Lighting System IP54
Aerospace-Grade Aluminum Alloy M40 Tethered Lighting System IP54
Aerospace-Grade Aluminum Alloy M40 Tethered Lighting System IP54
Aerospace-Grade Aluminum Alloy M40 Tethered Lighting System IP54
Aerospace-Grade Aluminum Alloy M40 Tethered Lighting System IP54
Specifications
Description

UAV Material: Carbon fiber + aerospace-grade aluminum alloy

Number of Rotors: 4 (quadcopter)

Wheelbase: 900 mm

Deployed Dimensions: 720 × 720 × 470 mm (L × W × H)

Folded Dimensions: 440 × 350 × 470 mm (L × W × H)

Empty Weight: ≤ 3 kg (battery excluded)

Maximum Payload: ≤ 5 kg

Maximum Take-off Weight: ≤ 11 kg

Safe Wind Speed: ≤ Level 6

Operating Temperature: –20 °C to 50 °C

Protection Rating: IP54

System Case – Main Body: 380 × 270 × 180 mm (L × W × H)

System Case – Overall (with handle & control panel): 410 × 300 × 185 mm (L × W × H)

Single Cable Length: 60 m

Cable Weight: 9.9 kg ± 0.1 kg

External Power Supply: AC 220 V

Maximum Cable-Retrieval Speed: ≥ 2 m/s

Operating Mode: Passive payout / Active retrieval

Power Output Voltage: DC 380–420 V

Power Output Max Power: 3 kW

Recommended On-board Power: ≤ 4 kW

Model: AF-L800 High-Voltage Light Board

Weight: 200 g

Dimensions: 190 × 44 × 22 mm (L × W × H)

Power: 150 W

Input Voltage: 380–420 VDC

Current: 3–4 A

Operation: Instant-on upon power-up

LED Type: COB

Luminous Flux: 100000 lm

Clamp Diameter: 20–40 mm
