Compact AF-800S59-6K Long Service Life Kitefly
Compact AF-800S59-6K Long Service Life Kitefly
Compact AF-800S59-6K Long Service Life Kitefly
Compact AF-800S59-6K Long Service Life Kitefly
Compact AF-800S59-6K Long Service Life Kitefly
Compact AF-800S59-6K Long Service Life Kitefly
Specifications
Warranty :
1-year manufacturer warranty
Portability :
Compact and easy to transport
Brand Name :
Kitefly
Weight :
Lightweight design under 500 grams
Payment Terms :
T/T
Productname :
Tethered Drone Accessories
Manufacturer :
Safety Solutions Inc.
Connector Type :
Standard drone power connectors
Temperaturerange :
-20°C to 60°C
Safetyfeatures :
Overload protection and emergency release mechanism
Certification :
ISO
Place of Origin :
China
Datatransmission :
Supports real-time high-speed data transfer
Model Number :
AF-800S59-6K
MOQ :
1
Durability :
Corrosion-resistant and impact-resistant construction
Description

Key Specifications

Parameter

Value

Model

AF-800S59-6K

Compatible Ground Stations

Any Kitefly tethered ground station rated ≥6500W output (e.g. G7, NG7, G15)

Input Voltage

650–900Vdc (rated); max limit 950Vdc

Output Voltage

40–60Vdc adjustable (typical 58.5Vdc) — 12S/14S compatible

Output Current

100A typical, 140A max

Rated Power

6000W

Peak Power

6800W

Efficiency

Up to 97.2%

IP Rating

IP65 (dust-tight, water jet resistant)

Operating Temperature

-40°C to +55°C (forced air cooling)

Maximum Altitude

5000m

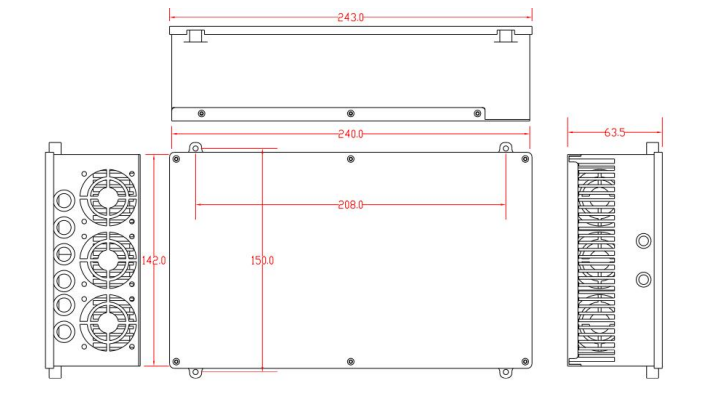

Dimensions

243 × 114.2 × 63mm (L × W × H)

Mounting Dimensions

208 × 150mm (hexagonal copper standoff mounting)

Weight

≤2.3kg

MTBF

≥100,000 hours

Warranty

1 Year

Availability

In Stock (2–3 weeks if out of stock)
