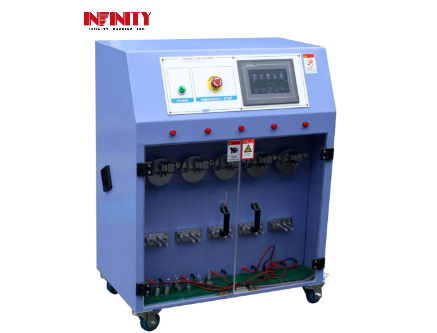

Five Stations Wire Swing Bending Resistance Testing Machine with 0～±180° Test Angle
Five Stations Wire Swing Bending Resistance Testing Machine with 0～±180° Test Angle
Five Stations Wire Swing Bending Resistance Testing Machine with 0～±180° Test Angle
Five Stations Wire Swing Bending Resistance Testing Machine with 0～±180° Test Angle
Specifications
Brand Name :
Infinity Machine Inc.
Model Number :
IC2095
Certification :
ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
200SETS PER MONTH
Delivery Time :
20-30 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
Five Stations Wire Swing Testing Machine
Application :
The equipment is suitable for multi-core cable, communication cable, headphone cable, flat cable, signal cable, charging cable and other wires for swinging and bending resistance test.
Feature :
Using Japan AC servo motor drive, high precision positioning is accurate, low noise, can be used for a long time. Test Angle: 0~180°，Error: ± 10°
Standard :
Bend test GBT 5023.2
Product model :
IC2095
Test speed :
6~420 ± 25 rad/s (settable)
Test angle range :
0～±180°
Control system :
Touch screen +PLC
Power :
Electronic
Warranty :
1 Year
Description
Five Stations Wire Swing Bending Resistance Testing Machine
Model: IC2095
This equipment is designed for testing the swing and bending resistance of multi-core cables, communication cables, headphone cables, flat cables, signal cables, charging cables, and various other wire types. The testing method involves securing one end of the wire to a rotating plate while the other end carries a weight. As the plate rotates left and right, the wire undergoes repeated bending cycles. After extensive testing, the equipment evaluates whether the wire maintains proper conduction.
Five Stations Wire Swing Bending Resistance Testing Machine with 0～±180° Test Angle
Key Features
  • Japan AC servo motor drive ensures high precision positioning, low noise operation, and long-term durability
  • Test angle range: 0~180° with ±1° accuracy
  • Special power supply rectifier circuit enhances motor longevity and anti-interference capabilities
  • High-precision photoelectric switch for origin induction with high pulse frequency
  • MCGS 7" TFT LCD touch screen controller with Chinese interface for easy program input and PLC control
  • Configurable test parameters including angle setting, speed, test cycles, rotation dwell time, and post-test residence time
  • Simultaneous testing capability for five wires
  • Individual signal test lines and indicator lights for each station - automatic counting stops when wire breakage occurs
Compliance Standard
Bend test GBT 5023.2
Technical Specifications
Parameter Specification
Product Model IC2095
Simultaneous Test Samples 5 pieces
Control System Touch screen + PLC
Drive System Japan servo motor
Test Speed 6~420 ± 25 rad/s (adjustable)
Motor Acceleration/Deceleration Time <45ms
Test Angle Range 0～±180°
Minimum Display Angle 1°
Test Cycle Range 1 ~ 999,999 times
Batch Stay Time 1~10 minutes
Reaction Member R1.5,2,2.5,3,3.5,4,4.5,5,5.5,6mm (specify when ordering)
Spinning Disc Diameter 160mm
Weight Options 50g, 100g, 150g, 250g, 300g
Host Dimensions W780 x D460 x H940mm
Host Weight Approximately 150kg
Power Supply AC220V 50Hz 10A
Support and Services
  • Implementation Assistance
  • Installation
  • Training
  • Calibration
  • Preventive Maintenance
  • Technical Support
  • Upgrade Services
  • Repair & Parts
Product Packaging
The Bending Test Machine is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and clearly labeled with product information for easy identification.
