High Application Servo Controlled Universal Tensile and Compressive Testing Machine 10KN
High Application Servo Controlled Universal Tensile and Compressive Testing Machine 10KN
High Application Servo Controlled Universal Tensile and Compressive Testing Machine 10KN
High Application Servo Controlled Universal Tensile and Compressive Testing Machine 10KN
Specifications
Brand Name :
Infinity Machine
Model Number :
IF2441
Certification :
CE ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
TT PAYPAL Moneygram and so on
Supply Ability :
200 sets / month
Delivery Time :
20-30 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
Servo Controlled Universal Tensile and Compressive Testing Machine
Product Model Number :
IF2441
Force capacity :
1000Kg(10KN)
Unit of force value: (switchable) :
N, KN, gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm²
Force value resolution :
1/500,000
Force accuracy :
±0.5%
Motor :
AC servo motor
Warranty :
1 year
Description

Servo Controlled Universal Tensile and Compressive Testing Machine

Product Model Number:IF2441

Application:

Suitable for tensile, compressive, bending, peeling, shearing, tearing, bursting, puncturing, fatigue and other tests on materials such as metal wire, metal foil, metal sheet and metal tape, rubber, plastic, sea/foam, waterproof materials, wires and cables, textiles, mesh ropes, non-woven fabrics, etc.

Standards:

This testing machine is manufactured in accordance with the standards of "Electronic Universal Testing Machine" GB/T 16491-2008, "General Technical Requirements for Testing Machines" GB2611-2007, "Testing of Force Measurement System of Tensile and Compressive Testing Machines", "Technical Conditions for Streptometers" JB6146-2007, and "General Specification for License Assessment of Manufacturing Measuring Instruments" JJF1246-2010.

Features:

1.Multifunctional:

With different fixtures, stretching, compression, bending, shear, tear, stripping and other tests.

2.High-accuracy:

Japanese Panasonic AC servo motor drive, high precision gap-free ball screw drive, with high precision TRANSCELL explosion-proof LOADCELL, force value accuracy up to ± 0.5%; displacement accuracy up to 0.01mm.

High Application Servo Controlled Universal Tensile and Compressive Testing Machine 10KN

3.High intelligence:

The functions of automatic discrimination break, automatic return, and curve combination, such as load-to-time displacement, displacement-time stress-strain, strain-time, stress-time and other curve analysis.

4.High application:

9 languages can be switched: Simple / Traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, global general use.

Specification parameter:

Model: IF2441
Force value capacity:

1000Kg(10KN)
Force value unit: (switchable) N, KN, gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm²
Force value decomposition degree: 1/500,000
Force value accuracy: ±0.5%

Test trip

 600mm
Test space effective width: 400mm
Test speed: 0.01~500mm/min
Speed accuracy: ±0.5%
Displacement resolution: 0.01mm
Motor:

AC servo motor
Drive link: High-precision ball-rolling screw
Equipment Size: (WxDxH) 830x670x1940mm
Weight of equipment: 350 Kg
Working power supply: AC220V 50/60Hz or specified by user

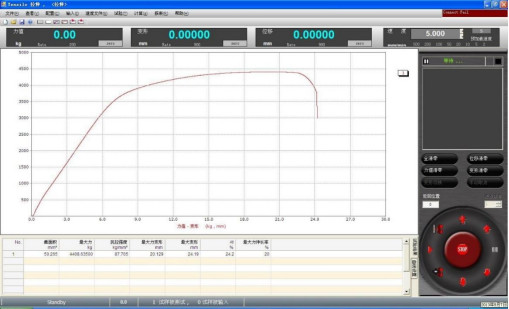

Testing software:

High Application Servo Controlled Universal Tensile and Compressive Testing Machine 10KN

Professional test report:

The report developed based on Crystal Reports10.0 can automatically calculate the strength, elastic modulus E, RP0.2, ReL, ReH, elongation, etc. The title and content of the report can be freely changed, and the curve is automatically generated. It can be exported in Excel, PDF and other formats.

High Application Servo Controlled Universal Tensile and Compressive Testing Machine 10KN

Our services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
