PLC Control Touch Screen Automatic Testing Wire Swing Life Tester
PLC Control Touch Screen Automatic Testing Wire Swing Life Tester
PLC Control Touch Screen Automatic Testing Wire Swing Life Tester
PLC Control Touch Screen Automatic Testing Wire Swing Life Tester
Specifications
Brand Name :
Infinity Machine
Model Number :
IN-B6303
Certification :
CE ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets / month
Delivery Time :
20-30 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
Wire Swing Life Tester
Model :
IN-B6303
Application :
Mainly used for small household appliances.
Features :
Fully automated testing;High-precision positioning;Conduction function
Test station :
1 Slot
Bending angle :
±720°The left and right bending angles can be set independently
Power :
Electronic
Warranty :
1 Year
Description

PLC Control Touch Screen Automatic Testing Wire Swing Life Tester

Model:IN-B6303

Application:

This equipment is mainly used for small household appliances. For example, at the charger connection, perform a lifting and swing test.

Adopt numerical control method to adjust angle, speed and times. Touch screen operation, high precision, low noise and long life.

Features:

1.Fully automated testing

Using Japanese OMRON touch screen + Mitsubishi PLC control, the operator can automatically complete the test after setting the test angle, test speed, and test number on the touch screen.

2.High-precision positioning

Driven by Japanese Panasonic servo motor, it has high speed, high precision and accurate positioning, low noise and can be used for a long time.

3.Conduction function

Using the continuity determination function, if the wire is damaged after N swing tests, the test will automatically stop.

Technical Parameters:

Model

IN-B6303

Test station

1 Slot

Bending angle

±720°The left and right bending angles can be set independently

Bend count

0-9999999 Times (Can be set), screen indicate

Test speed

1~60 Times/min

Hoisting space

1390~1395mm

Load weight

1PC=200g,1PC=500g, Total: PCS

Body weight

Around 56kg

Dimensions

W800×D650×H1700mm

Power supply

AC220V 3A

Emergency stop response time

100ms

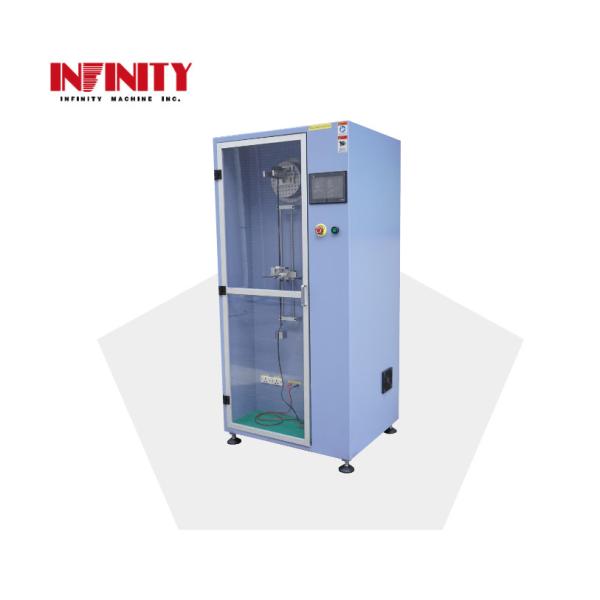

Equipment picture:

PLC Control Touch Screen Automatic Testing Wire Swing Life Tester

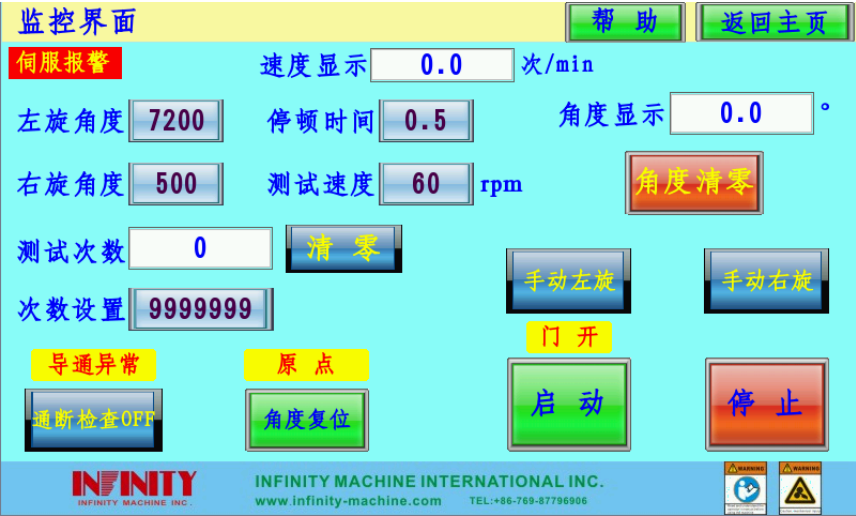

Testing software:

After setting the test angle, test speed, and test times, the test can be completed automatically.

PLC Control Touch Screen Automatic Testing Wire Swing Life Tester

Our services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
