ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
Specifications
Brand Name :
Infinity Machine Inc.
Model Number :
C5092
Certification :
ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
50 set per month
Delivery Time :
35-40 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
Auto Cable Cyclic Flexing Test Machine
Model :
C5092
Application :
cables cyclic cable bending test machines is suitable for the bending testing of the multi-wires cable, communication cable, earphone cable etc.
Test standard :
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure; ISO 19642-2:2023 Automotive Cables Cyclic Bending Test
Test amount :
2 pcs
Test speed :
10~60rpm±2cpm (Frequent user of 13rpm)
Angle range :
±90° / 0°~180°
Testing cycles :
1～999,999times
Power :
Single phase AC220V or 120V±10%, 50/60Hz
Warranty :
1 Year
Description
Automotive Wires Cyclic Bending Fatigue Test Machine
Product Overview

The Auto Cable Cycle Flexing Test Machine evaluates bending fatigue performance for various cable types, compliant with ISO 19642-2 standards. This specialized testing equipment assesses cable conductivity and overall quality through repeated cyclic bending movements.

Applications
  • Multi-conductor cables
  • Communication cables
  • Data cables
  • Robot cables
  • Automotive cables
  • Earphone wires
  • Machine cables
Testing Methodology

The testing process involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles.

Compliance Standards
  • ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
  • ISO 19642-2:2019 & ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2--2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

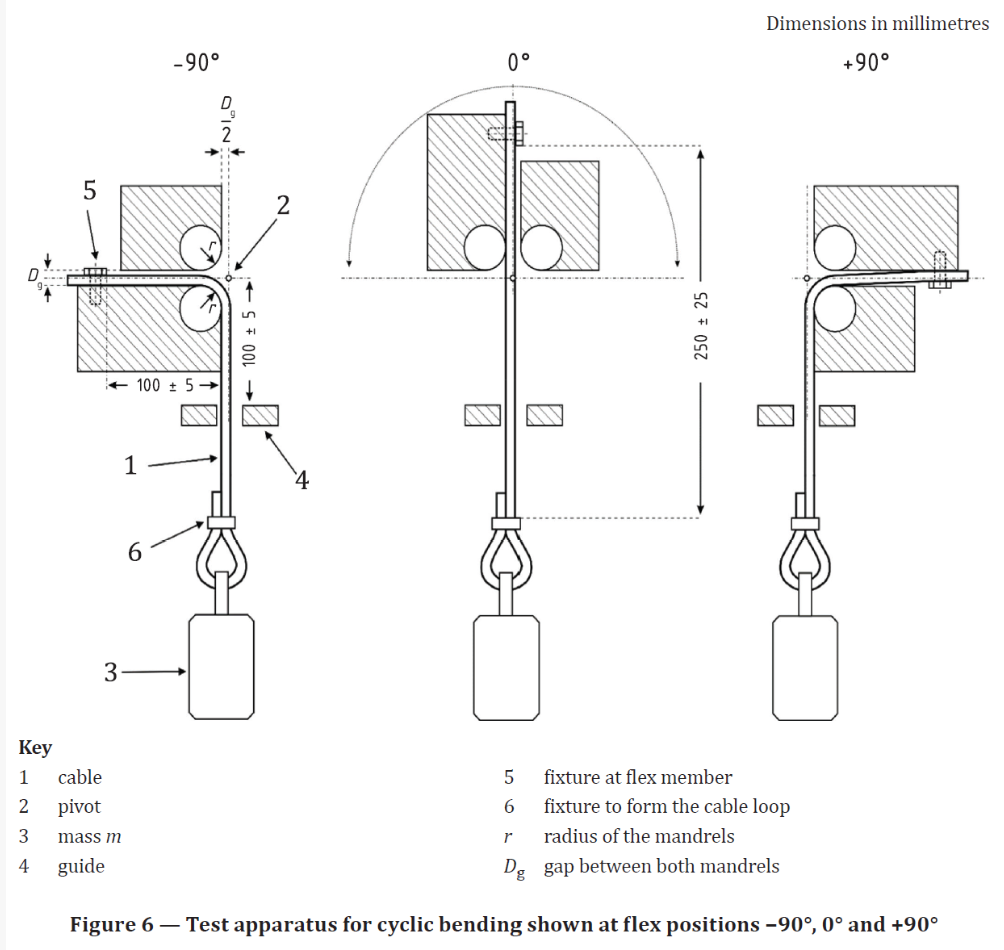

Testing Configuration
ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
Technical Specifications
Parameter Specification
Model C5092
Test Amount 2 pcs
Test Speed 10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range 90°
Min Display Angle ±1°
Testing Cycles 1～999,999 times
Guide Wheel Radius R13, R19, R25, R37, R55, R69, R82, R107 (or customized)
Diameter of Rotation Plate 275mm
Weights 100g, 200g, 500g, 1000g (or customize)
Dimension (W×D×H) 1280×724×1320mm
Weight 350kg
Power Supply Single phase AC220V / AC120V 50/60Hz 5A or specified by user
Product Appearance
ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90° ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
Packaging and Shipping

Automotive cables cyclic bending test machine is packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.

We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
