Industrial Robot Cable Torsion Test Machine Vertical Type CRIA 0003.2-2016 Compliant
Industrial Robot Cable Torsion Test Machine Vertical Type CRIA 0003.2-2016 Compliant
Industrial Robot Cable Torsion Test Machine Vertical Type CRIA 0003.2-2016 Compliant
Industrial Robot Cable Torsion Test Machine Vertical Type CRIA 0003.2-2016 Compliant
Industrial Robot Cable Torsion Test Machine Vertical Type CRIA 0003.2-2016 Compliant
Industrial Robot Cable Torsion Test Machine Vertical Type CRIA 0003.2-2016 Compliant
Specifications
Brand Name :
Infinity Machine Inc.
Model Number :
IC2274
Certification :
ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
35~45 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
Robot Cable Torsion Test Machine Vertical Type
Model :
IC2274
Application :
Robotic cable torsion test machines are suitable for the torsion test of multi-core cables and communication cables.
Standards :
Complies with standards such as those of the China Robot Industry Alliance, CRIA 0003.2-2016 Special Cables for Industrial Robots — Part 2: Test Methods.
Working station :
4
orsion angle :
1~±180° /±270° / ±360° (Customizable)
Test speed :
1~30 cycles/min (Adjustable)
Power :
AC220V or AC120V
Warranty :
1 Year
Description
Industrial Robot Cable Torsion Test Machine - Vertical Type
Comprehensive testing equipment for multi-core cables and communication cables compliant with CRIA 0003.2-2016 standards for industrial robot special cables.
Product Overview
Model: IC2274
Compliance: China Robot Industry Alliance CRIA 0003.2-2016 Special Cables for Industrial Robots -- Part 2: Test Methods
Application
Designed for torsion testing of multi-core cables and communication cables. Performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.
Technical Specifications
Item Specification
Test Station 4 stations (Customizable)
Sample Diameter 3~15mm (Customizable)
Specimen Test Length 500~1000mm (Customizable)
Sample Torsion Speed 1~30 cycles/min (Adjustable)
Torsion Angle 1~±180° /±270° / ±360° (Customizable)
Control Method Touch screen control
Counting Digits 0-99999999 cycles
Motor Servo motor (Japan)
Machine Weight Approx. 400 Kg
Working Power Supply AC220V, 50Hz ; AC120V, 60Hz (specifiable)
Equipment Power 1.8KW
Equipment Dimensions W1700*D740*H1700mm

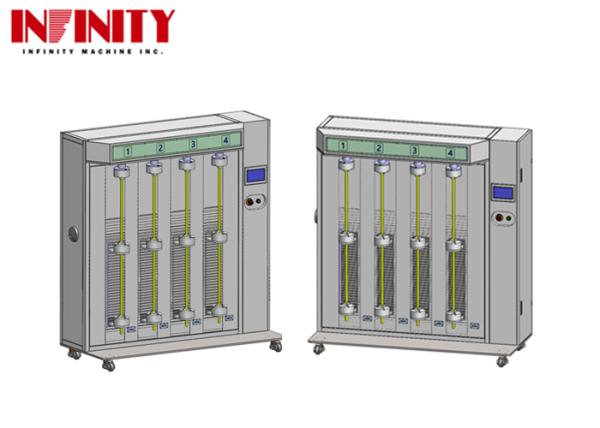

Product Appearance
Industrial Robot Cable Torsion Test Machine Vertical Type CRIA 0003.2-2016 Compliant Industrial Robot Cable Torsion Test Machine Vertical Type CRIA 0003.2-2016 Compliant
Packaging and Shipping
  • Product Packaging: The robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
  • Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
