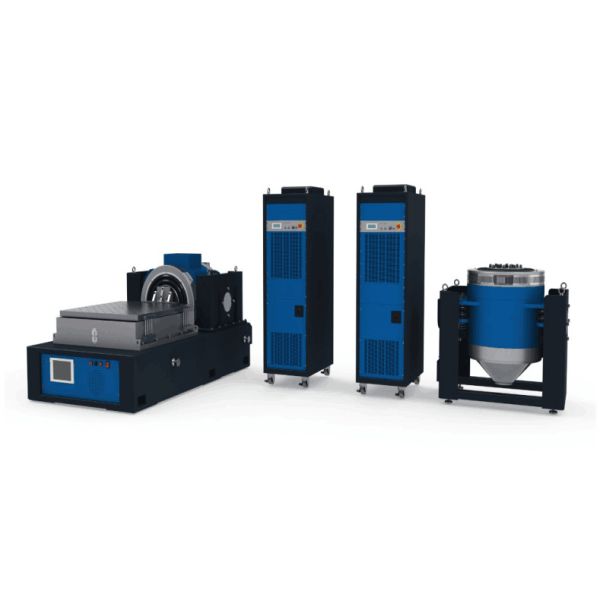

High Frequency Package Testing Equipment , Vibration Test Bench 1 Year Warranty
High Frequency Package Testing Equipment , Vibration Test Bench 1 Year Warranty
Specifications
Brand Name :
Infinity Machine
Model Number :
RS - V Series
Certification :
CE, ISO
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Standard export wooden case with operation manual and video inside.
Name :
High-frequency Vibration Test Bench
Standards :
MIL, ASTM, IEC, ISO,BS, JIS
Size of power amplifier （LxWxH） :
720x545x1625
Rated displacement :
25
Vibrating manner :
Cycling type
Standard application :
IEC68-2-6, GB/T13310-1991, GB/T2423.10
Colour :
Blue
Warranty :
1 year
Description

High-frequency Vibration Test Bench for Large-scale Household Appliances Transportation Vibration Simulation Experiment

Model:RS-V Series


Purpose:

The vibration test is to simulate the varied vibration environment encountered during the manufacturing, assembling, transporting and application stage of products, applied to certify the capacity of products in withstanding the environmental vibration. The vibration can be divided to the free vibration and forced vibration. The free vibration is a system under no any external force exerted to it and it vibrates at one or multiple natural frequencies. The natural frequency is the dynamic character of a system that counts on system mass and stiffness; and the forced vibration is occurred under certain external forced exerted to the system. Most structures would make certain level of vibration while external force is exerting on it, therefore we must carefully consider the vibration behavior while making engineering design task.

Features:

The main purpose of perform vibration test is to display out the potential flaw hidden in a product; let the flawless products pass through the screen process and the flawed products appear in earlier stage to repair of remove them in order to promote the reliability of products. This test model also can be applied to analyze the integrity of specimen and/or study its dynamic character.

Standards: MIL, ASTM, IEC, ISO,BS, JIS.

Specification:

ModelRS-V100RS-V150RS-V200RS-V300RS-V600RS-V1000
System main specRated sine vibration force(N)98014701960294058809800
Random thrust98014701960294058809800
Impact thrust(bmx)19602940392058801176019600
Rated Frequency range(Hz)5-45005-40005-3000
Rated Acceleration(m/s2) No-load4907359801176
Rated speed(m/s)1.751.151.751.11.51.8
Rated displacement25
Max Testing load(Kg)70120200120
Consumption power(KVA)4.55.57.51720
Voltage(V)3∮ 380V±10% AC50Hz
Vibration bodyThe weight of the moving parts(Kg)22.75.68.3
Table top size(mm)∮110∮150∮200∮200
Table weight(Kg)320450630940
Table size(LxWxH)(mm)660x550x650720x550x650790x680x660830x690x825
Power amplifierMax output power(KVA)123810
Weight of Power amplifier(Kg)210230240310340

Size of power amplifier
(LxWxH)

720x545x1625
Vibration controller( Optional)SDVC-2 SDVC-3 RDVC-2 RDVC-3
Cooling methodCooling method
Standard applicationIEC68-2-6, GB/T13310-1991, GB/T2423.10

Horizon sliding table
( Optional)

See below


Optional Horizon sliding table:

Model

Table outside size
(mm)

The upper limit frequency(Hz)

Table weight
(Kg)

Rs0303300x300x3020008.3
Rs0404400x400x32180015.6
Rs0505500x500x25100018.5
Rs0606600x600x35200026.1
Rs0707700x700x35150048.8
Rs0808800x800x45200083.5
Rs10101000x1000x501500144.6
Rs12121200x1200x501200204
Rs15151500x1500x501200320
Rs20202000x2000x50500564
CommentsIf there are special requirement for the horizon sliding table, we can do the custom-making.
