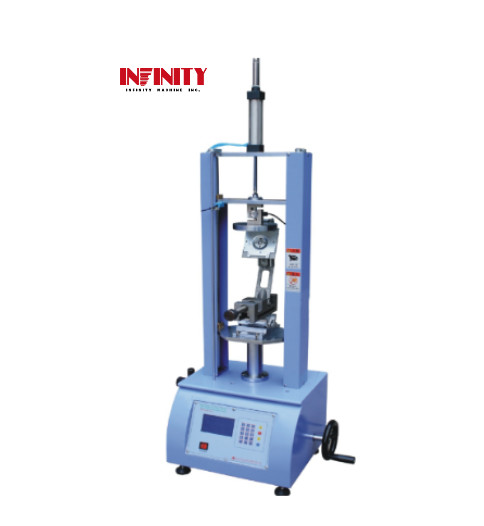

Pneumatic Springs Compressive Strength Testing Machine Ascending Descending Testing
Pneumatic Springs Compressive Strength Testing Machine Ascending Descending Testing
Specifications
Brand Name :
Infinity Machine
Model Number :
RS-6100B
Certification :
CE, ISO
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Standard export wooden case with operation manual and video inside.
Test load :
50Kgf (max) or specified
Effective compress range :
0～200mm ( adjustable )
Working table up and down range :
0～100mm ( adjustable )
Dimension :
650x350x900mm
Weight :
45kg
Power supply :
AC220V 5A or specified by user
Description

Pneumatic Springs Compressive Strength Testing Machine Ascending Descending Testing

Model: RS-6100B

Application:

This tester is suitable for the ascending and descending testing of hinge of LCD monitor.

Pneumatic Springs Compressive Strength Testing Machine Ascending Descending Testing

Specification:

Model RS-6100B
Test load 50Kgf (max) or specified
Effective compress range 0-200mm ( adjustable )
Test range

2-20times/min (The stroke of the spring is <130mm)
Test cycle 1~999,999times (cycle)
Working table up and down range 0～100mm ( adjustable )
Hinge accept Dim (WxDxH) 200x200x500mm
Dimension (WxDxH) 650x350x900mm
Weight 45kg
Power supply AC220V 5A or specified by user
