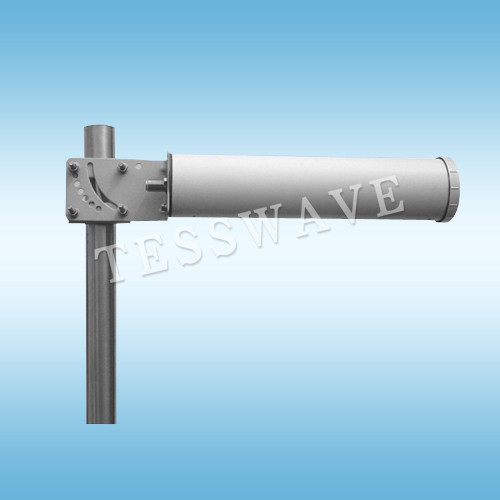

2.4GHz 15dBi radome enclosed high gain directional wifi yagi antenna
2.4GHz 15dBi radome enclosed high gain directional wifi yagi antenna
Specifications
Place of Origin :
China
Brand Name :
Tesswave
Model Number :
TYE-2400-15E
Description
Electrical
Model TYE-2400-15E
Frequency Range-MHz 2400-2500
Bandwidth-MHz 100
Gain-dBi 15
VSWR ≤1.5
Polarization Vertical or horizontal
Horizontal Beamwidth-° 30
Vertical Beamwidth-° 25
F/B Ratio: >16 dB
Max power-W 100
Nominal Impedance-Ω 50
Lightning Protection: DC Ground
Mechanical
Connector­­­ N Female or customized
Dimension-mm 630
Weight-kg 0.8
Radome Material Aluminum Alloy
Mast Diameter-mm Ø40-Ø50mm
Operating temperature-℃ -40~+65
Rated Wind Velocity-m/s 60

Applications

  • 2.4GHz ISM Band
  • IEEE 802.11b/g/n Wireless LAN Applications
  • Bluetooth® & Public Wireless Hotspot
  • WiFi & Wireless Video Systems
  • Directional and multipoint applications

Features

  • Integrated N Female connector
  • Light structure and small dimension
  • Includes tilt and swivel mast mount
  • UV-stable, UL flame rated radome
  • Can be installed for either vertical or horizontal polarization
  • All weather operation
