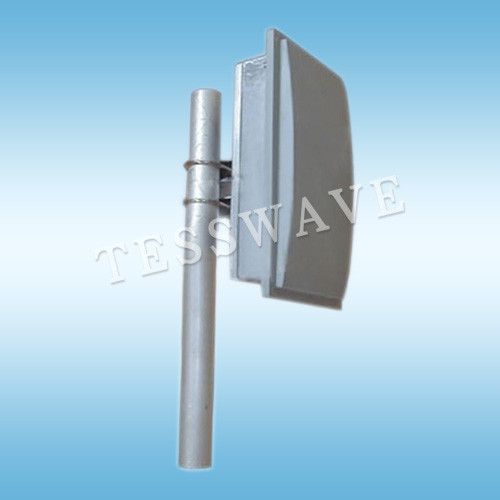

2.4GHz 16dBi long range wireless internet antenna with enclosure
2.4GHz 16dBi long range wireless internet antenna with enclosure
Specifications
Place of Origin :
China
Brand Name :
Tesswave
Model Number :
TPE-2400-16V
Price Terms :
FOB,CIF
Description
Electrical
Model TPE-2400-16V
Frequency Range-MHz 2400-2500
Bandwidth-MHz 100
Gain-dBi 16
VSWR ≤1.8
Polarization Vertical
Horizontal Beamwidth-° 25
Vertical Beamwidth-° 30
F/B ratio-dB ≥25
Max power-W 100
Nominal Impedance-Ω 50
Lightning Protection DC Ground
Mechanical
Connector­­­ N-Female or customized
Antenna Dimension-mm 320×200×100
Weight-kg 2
Radome Material ABS
Operating temperature-℃ -40~+65
Rated Wind Velocity-m/s 60

Applications

  • 2.4 GHz ISM Band
  • IEEE 802.11b/g Wireless LAN
  • Point to Point Systems & Point to Multi-point Systems
  • WiFi & Wireless Video Systems
  • Wireless bridge, CPE

Features

  • High Gain,Low VSWR
  • Integrated radio enclosure
  • Strong corrosion resistance radome
  • Supplied With a Tilt and swivel Mast Mount Kit
  • DC Ground For Lightning Protection
  • Integral CAT5/6 Quick Connector
  • Gasket seal and quick connection
