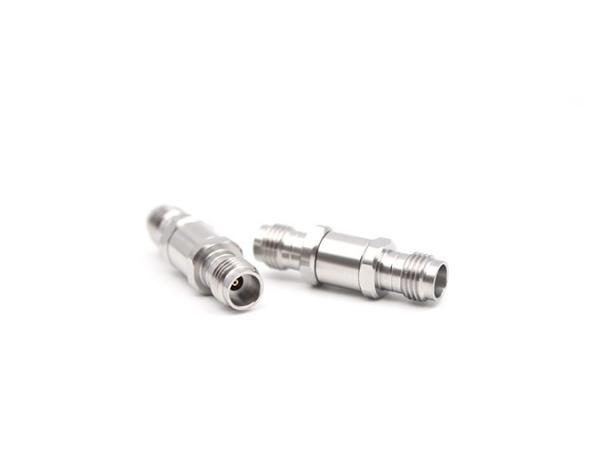

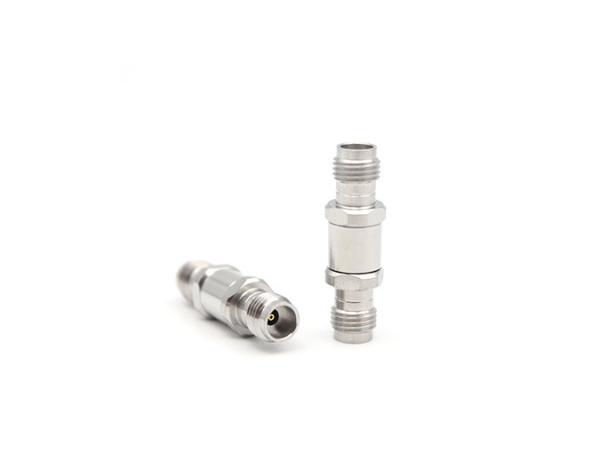

Precision Adapter 2.4 Female to 2.4 Female 2.4-KKG
Precision Adapter 2.4 Female to 2.4 Female 2.4-KKG
Precision Adapter 2.4 Female to 2.4 Female 2.4-KKG
Precision Adapter 2.4 Female to 2.4 Female 2.4-KKG
Precision Adapter 2.4 Female to 2.4 Female 2.4-KKG
Precision Adapter 2.4 Female to 2.4 Female 2.4-KKG
Specifications
Brand Name :
Terui
Model Number :
2.4-KKG
Certification :
RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

Precision Adapter 2.4 Female to 2.4 Female 2.4-KKG

The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.

Product Details

Precision Adapter 2.4 Female to 2.4 Female

Teruilai P/N : 2.4-KKG

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-40GHZ
Characteristic impedance 50Ω
VSWR ≦1.25:1
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -55℃ to +65℃
Material data Requirments
Connector parts Material Plating
Body Stainless steel Passivated
Pin contacts Beryllium-Copper Gold-plated
Insulators PEI
