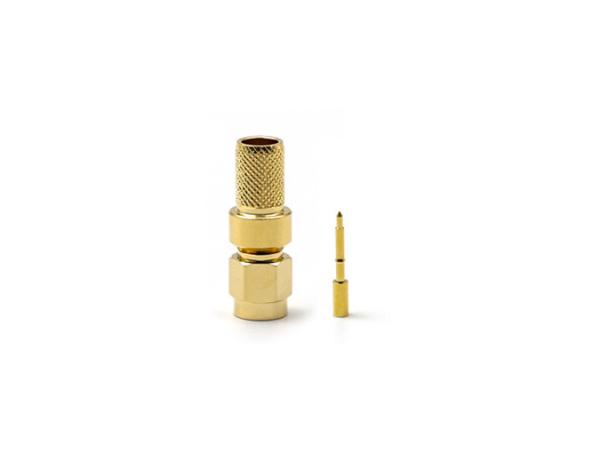

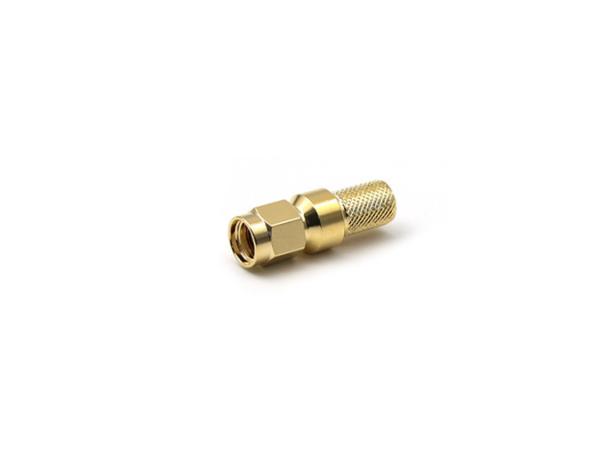

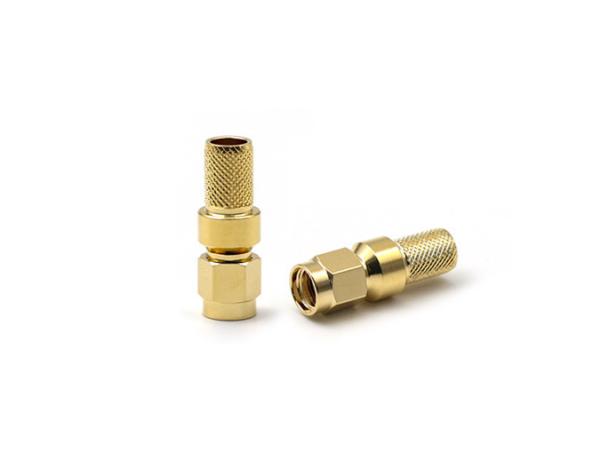

RF Connector SMA Male for LMR300 cable, crimp
RF Connector SMA Male for LMR300 cable, crimp
RF Connector SMA Male for LMR300 cable, crimp
RF Connector SMA Male for LMR300 cable, crimp
RF Connector SMA Male for LMR300 cable, crimp
RF Connector SMA Male for LMR300 cable, crimp
Specifications
Brand Name :
Terui
Model Number :
SMA-J300Y-1
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

RF Connector SMA Male for LMR300 cable, crimp

Type SMA is one kind of RF coaxial connectors which is small-sized thread coupling, and its characteristic impendence is 50Ω. The interface mating dimensions and technical characteristics are according to the standard of MIL-C-39012, IEC169-15 and CECC22110.

Product Details

RF Connector SMA Male for LMR300 cable, crimp

Teruilai P/N: SMA-J300Y-1

RoHS Certificate: Compliant

Electrical data Requirments
Impedence 50Ω
Frequency DC-6GHz
Center Contact Resistance ≦3MΩ
Outer Contact Resistance ≦2MΩ
Insulation Resistance ≧5000mΩ
VSWR 1.25:1
Mechanical & Enviromental Requirments
Temperature range -45℃ ~ +85℃
Durability >500 cycles
Material &plating Requirments
Connector parts Material Plating
Body Brass Gold
Pin Contact Brass Gold
Insulators PTFE
Crimp ferrules copper,brass Gold
