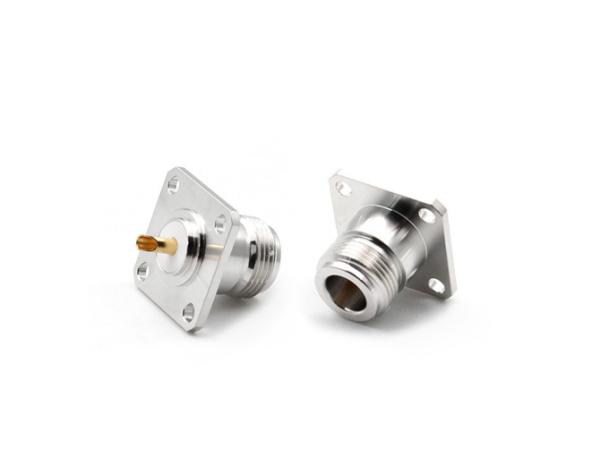

N female Connector Flange Mounting

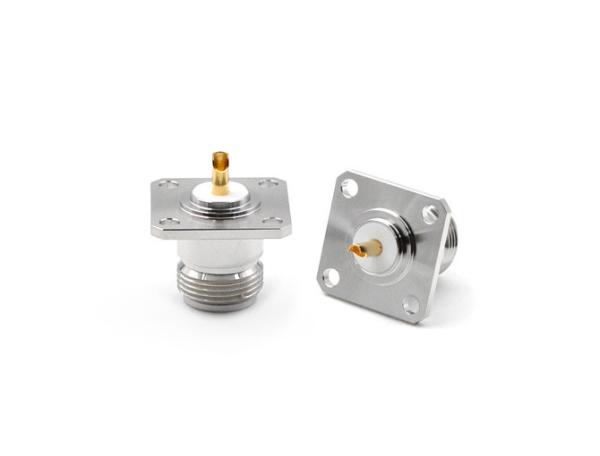

N female Connector Flange Mounting

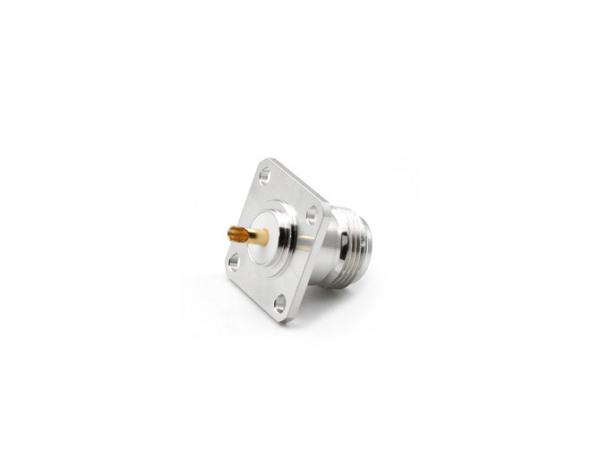

N female Connector Flange Mounting
N female Connector Flange Mounting
N female Connector Flange Mounting
N female Connector Flange Mounting
Specifications
Brand Name :
Terui
Model Number :
N: N-50KF-C
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

N female Connector Flange Mounting

Series N female flange Micro RF Coaxial Connector is one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. It has great performance of vibration-proof, high reliablity and super electrical properties, widely used in communication applications.Concerning the cable links, clamp, crimp and solder types are all available.

Product Details

N female Connector Flange Mounting

Teruilai P/N: N-50KF-C

Electrical data Requirments
Frequency range DC-6GHZ
Dieletric withstanding voltage 1500V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
Contact Resistance
.Center conductor ≦1.0mΩ
.Outer conductor ≦0.2mΩ
VSWR ≦1.20
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -40℃ to 70℃
Material data Requirments
Connector parts Material Plating
Body brass Nickel -plated
Pin contacts brass /beryllium copper Gold plated
Insulators teflon
