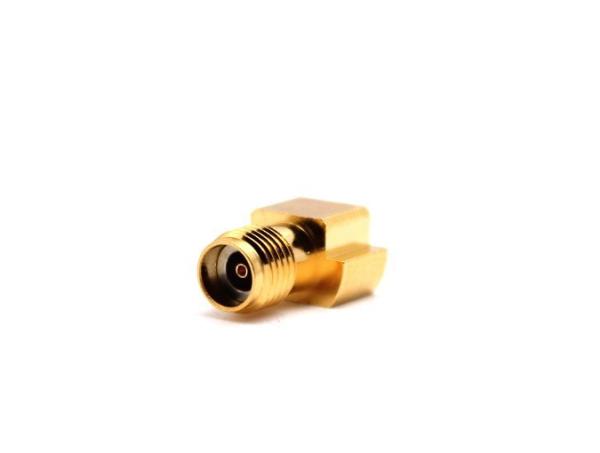

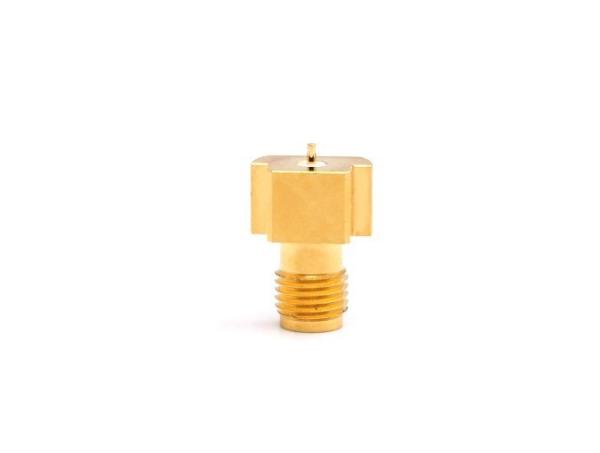

2.92mm Female RF Connector
2.92mm Female RF Connector
2.92mm Female RF Connector
2.92mm Female RF Connector
2.92mm Female RF Connector
2.92mm Female RF Connector
Specifications
Brand Name :
Terui
Model Number :
2.92-KHD
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

2.92mm Female RF Connector

Micro RF Coaxial Connector 2.92mm female (jack) 2 holes flange millimeter-wave connector.
They have the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.

Product Details

2.92mm Female RF Connector

Teruilai P/N: 2.92-KHD

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-40GHZ
Dieletric withstanding voltage ≧750V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
Contact Resistance
.Center conductor ≦4.0mΩ
.Outer conductor ≦2.0mΩ
VSWR ≦1.30:1
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -45℃ to 125℃
Material data Requirments
Connector parts Material Plating
Body Brass Gold
Pin contacts Beryllium-Copper Gold
Insulators PEI &Teflon
