SMB female straight connector for RG405 Cable
SMB female straight connector for RG405 Cable
SMB female straight connector for RG405 Cable
SMB female straight connector for RG405 Cable
SMB female straight connector for RG405 Cable
SMB female straight connector for RG405 Cable
Specifications
Brand Name :
Terui
Model Number :
SMB-75KB2
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

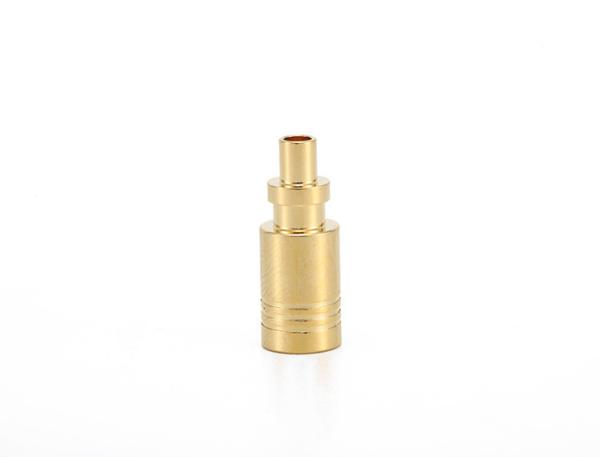

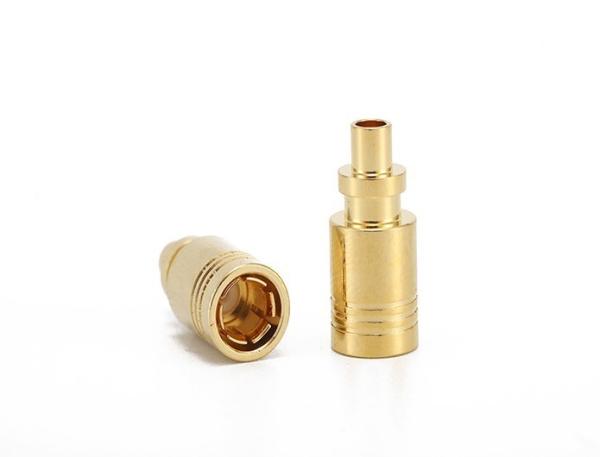

SMB female straight connector for RG405 Cable

SMB is one kind of coaxial precision connectors up to 4GHZ Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.

Product Details

SMB female straight connector for RG405 Cable

Teruilai P/N: SMB-75KB2

RoHS Certificate : Compliant

Electrical data Requirments
Frequency range DC-2GHZ
Dieletric withstanding voltage 1000V
working voltage ≦335V
Characteristic impedance 75Ω
Insulation Resistance ≧1000MΩ
Contact Resistance
.Center conductor ≦6.0mΩ
.Outer conductor ≦1.0mΩ
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -45℃ to 85℃
Material data Requirments
Connector parts Material Plating
Inner Contact beryllium copper Gold-plated
Outer Contact Brass Gold-plated
Insulators Teflon
Contact Spring Beryllium copper Gold-plated
