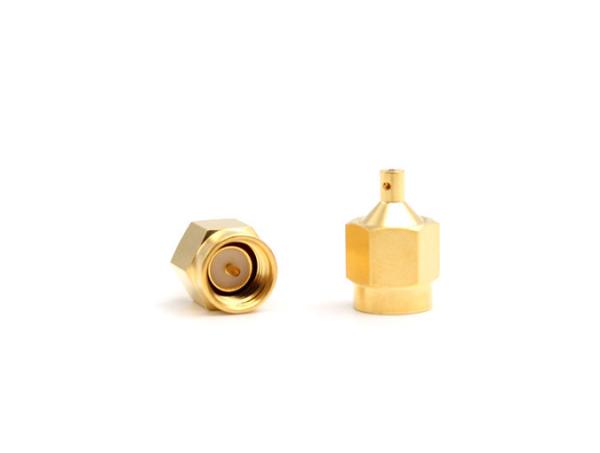

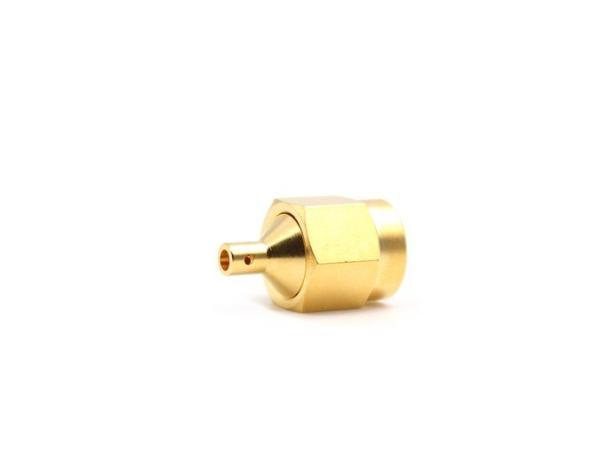

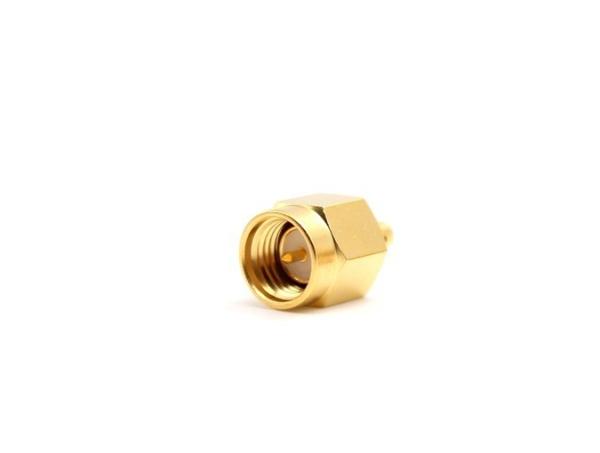

SMA Male Connector For 1.13/1.32/1.37 Cable
SMA Male Connector For 1.13/1.32/1.37 Cable
SMA Male Connector For 1.13/1.32/1.37 Cable
SMA Male Connector For 1.13/1.32/1.37 Cable
SMA Male Connector For 1.13/1.32/1.37 Cable
SMA Male Connector For 1.13/1.32/1.37 Cable
Specifications
Brand Name :
Terui
Model Number :
ISMA-JB1A
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

SMA Male Connector For 1.13/1.32/1.37 Cable

Type SMA is one kind of RF coaxial connectors which is small-sized thread coupling, and its characteristic impendence is 50Ω.

The interface mating dimensions and technical characteristics are according to the standard of MIL-C-39012, IEC169-15 and CECC22110.

Product Details

SMA Male Connector For 1.13/1.32/1.37 Cable

Teruilai P/N: ISMA-JB1A

RoHS Certificate: Compliant

Electrical data Requirments
Impedence 50Ω
Frequency DC-18GHz
Center Contact Resistance ≦3MΩ
Outer Contact Resistance ≦2MΩ
Insulation Resistance ≧5000mΩ
VSWR 1.30:1
Mechanical & Enviromental Requirments
Temperature range -45℃ ~ +125℃
Durability >500 cycles
Material &plating Requirments
Connector parts Material Plating
Body Brass Gold
Pin Contact Brass Gold
Insulators Teflon
Coupling nut Brass Gold
