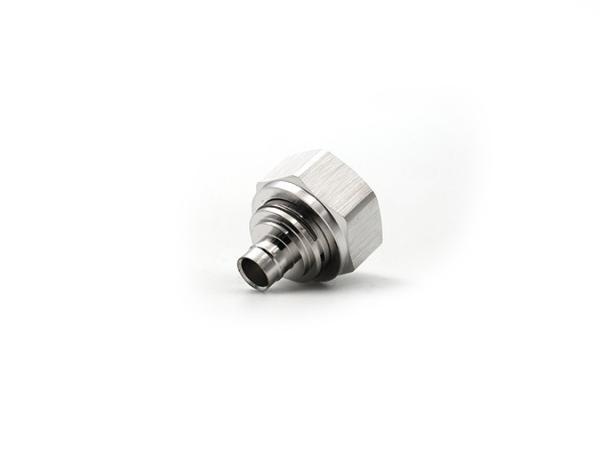

4.3-10 male RF Connector for UT/RG401 Cable
4.3-10 male RF Connector for UT/RG401 Cable
4.3-10 male RF Connector for UT/RG401 Cable
4.3-10 male RF Connector for UT/RG401 Cable
4.3-10 male RF Connector for UT/RG401 Cable
4.3-10 male RF Connector for UT/RG401 Cable
Specifications
Brand Name :
Terui
Model Number :
4.3-10-JB401
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

4.3-10 male RF Connector for UT/RG401 Cable

4.3-10 male coaxial push connector impedance is 50 ohm. 4.3-10 Male connectors adopt shielded/contact solder/solder as connection method.

Our male 4.3-10 coaxial connector provides DC at the lowest frequency and 6 GHz at the highest frequency.

Product Details

4.3-10 male RF Connector for UT/RG401 Cable

Teruilai P/N: 4.3-10-JB401

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range 0-3GHZ
Dielectric withstanding voltage 2500V
Characteristic impedance 50Ω
Insulation Resistance ≧10000MΩ
VSWR ≦1.15
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -45℃ to +85℃
Material data Requirments
Connector parts Material Plating
Body Brass Suco plated
Pin contacts Bronze Silver plated
Gasket Silicon rubber
Insulators Teflon
