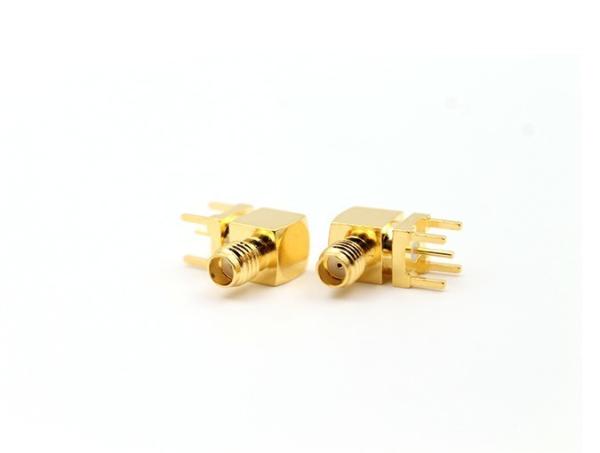

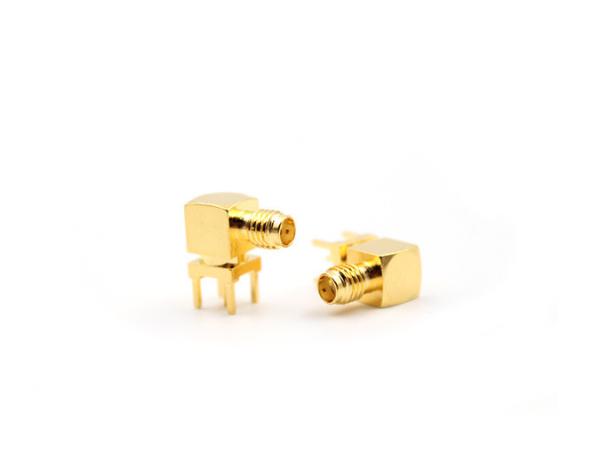

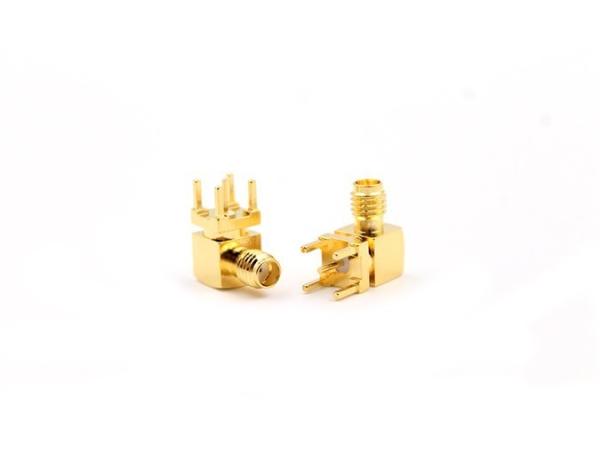

RF Connector SSMA Female Right Angle PCB Mount
RF Connector SSMA Female Right Angle PCB Mount
RF Connector SSMA Female Right Angle PCB Mount
RF Connector SSMA Female Right Angle PCB Mount
RF Connector SSMA Female Right Angle PCB Mount
RF Connector SSMA Female Right Angle PCB Mount
Specifications
Brand Name :
Terui
Model Number :
SSMA-KWHD-A
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

RF Connector SSMA Female Right Angle PCB Mount

This 50 Ohm SSMA Connectors is precision manufactured to RF components industry specifications.

Product Details

RF Connector SSMA Female Right Angle PCB Mount

Teruilai P/N: SSMA-KWHD-A

RoHS Certificate: Compliant

Electrical data Requirments
Impedence 50Ω
Frequency DC-6GHz
Center Contact Resistance ≦3MΩ
Outer Contact Resistance ≦2MΩ
Insulation Resistance ≧5000mΩ
VSWR 1.20:1
Mechanical & Enviromental Requirments
Temperature range -40℃ ~ +85℃
Durability >500 cycles
Material &plating Requirments
Connector parts Material Plating
Body Brass Gold
Pin Contact Beryllium copper Gold
Insulators Teflon
