UHF female sky window crimp for RG 316 Cable RF connector
UHF female sky window crimp for RG 316 Cable RF connector
Specifications
Brand Name :
Terui
Model Number :
UHF-K3CY
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

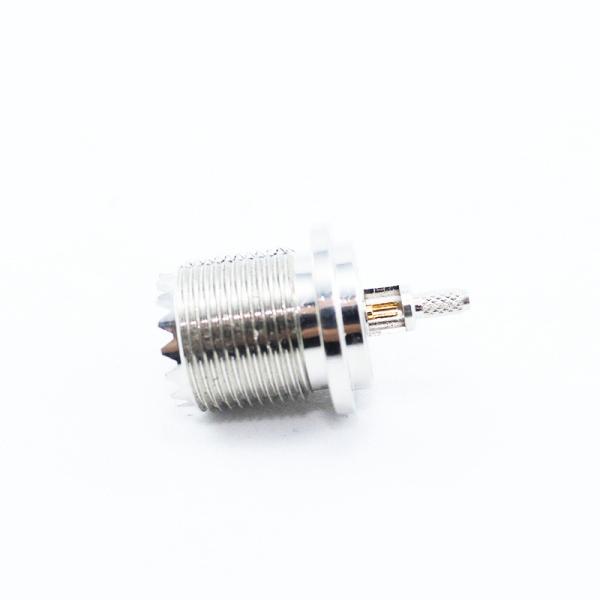

UHF female sky window crimp for RG 316 Cable RF connector

Series UHF is a connector with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground

control apparatus.

Product Details

UHF female sky window crimp for RG 316 Cable RF connector

Teruilai P/N: UHF-K3CY

RoHS Certificate: Compliant

E;ectrical data Requirments
Frequency range DC-300MHZ
Dieletric withstanding voltage 1500V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
Contact Resistance
.Center conductor ≦0.005mΩ
.Outer conductor ≦0.005mΩ
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -40℃ to 125℃
Material data Requirments
Connector parts Material Plating
Body Brass Nickel/Suco-plated
Pin contacts Beryllium-Copper Gold-plated
Insulators Teflon
