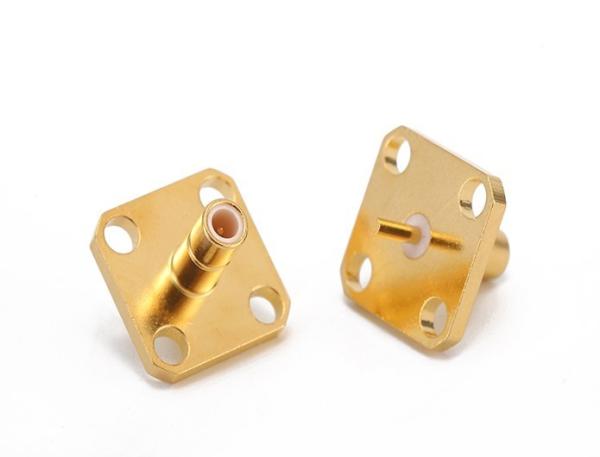

SMB male 4 holes flange RF Coaxial Connector for terminal
SMB male 4 holes flange RF Coaxial Connector for terminal
SMB male 4 holes flange RF Coaxial Connector for terminal
SMB male 4 holes flange RF Coaxial Connector for terminal
SMB male 4 holes flange RF Coaxial Connector for terminal
SMB male 4 holes flange RF Coaxial Connector for terminal
Specifications
Brand Name :
Terui
Model Number :
SMB-JFD2
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

SMB male 4 holes flange RF Coaxial Connector for terminal

SMB is one kind of coaxial precision connectors up to 4GHZ Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.

Product Details

SMB male 4 holes flange RF Coaxial Connector for terminal

Teruilai P/N: SMB-JFD2

RoHS Certificate : Compliant

Electrical data Requirments
Frequency range DC-4GHZ
Dieletric withstanding voltage 1000V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
Contact Resistance
.Center conductor ≦5.0mΩ
.Outer conductor ≦2.5mΩ
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -55℃ to 155℃
Material data Requirments
Connector parts Material Plating
Body Brass Gold-plated
Pin contacts Beryllium-Copper Gold-plated
Insulators Teflon
