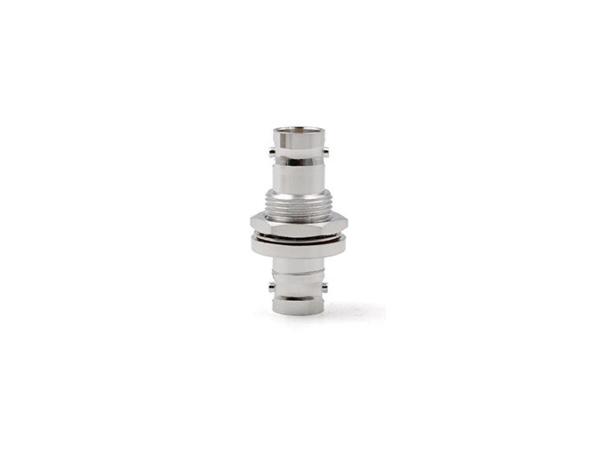

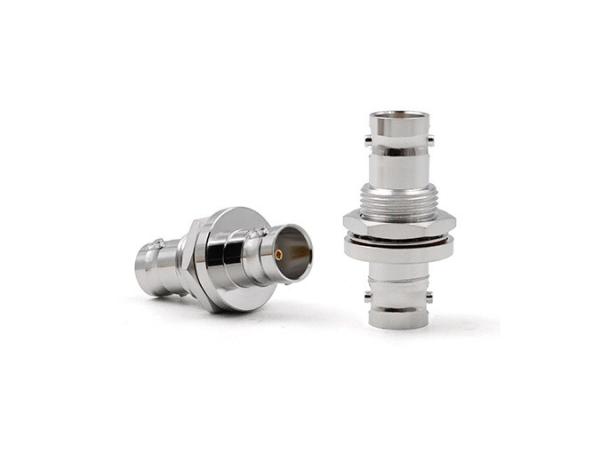

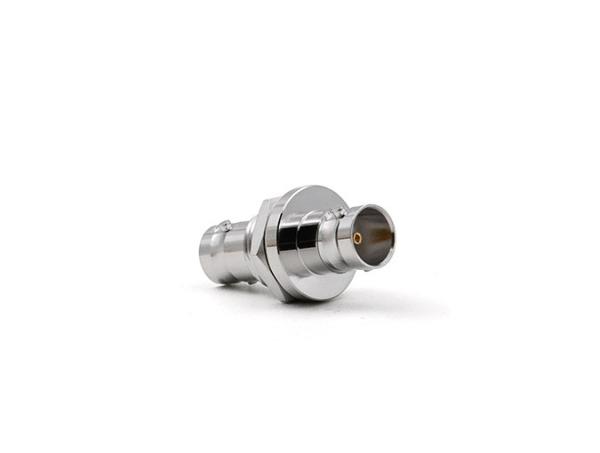

75Ω RF Adapter BNC double female bulkhead
75Ω RF Adapter BNC double female bulkhead
75Ω RF Adapter BNC double female bulkhead
75Ω RF Adapter BNC double female bulkhead
75Ω RF Adapter BNC double female bulkhead
75Ω RF Adapter BNC double female bulkhead
Specifications
Brand Name :
Terui
Model Number :
BNC-75KYKM-F
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

75Ω RF Adapter BNC double female bulkhead

Type BNC is one kind of RF coaxial connector with a bayonet coupling mechanism, which has the excellent performance of quick

connect/disconnect, high reliability, they are widely used in connection with RF coaxial cables in computer field, wireless network, medical equipment and electronic instruments.

Product Details

75Ω RF Adapter BNC double female bulkhead

Teruilai P/N: BNC-75KYKM-F

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range 0-2GHZ
Dieletric withstanding voltage 1500V
Characteristic impedance 75Ω
Insulation Resistance ≧5000MΩ
Contact Resistance
.Center conductor ≦1.5mΩ
.Outer conductor ≦1mΩ
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -40℃ to+70℃
Material data Requirments
Connector parts Material Plating
Body Brass Nickel plated
Pin contacts Brass Gold
Insulators teflon
