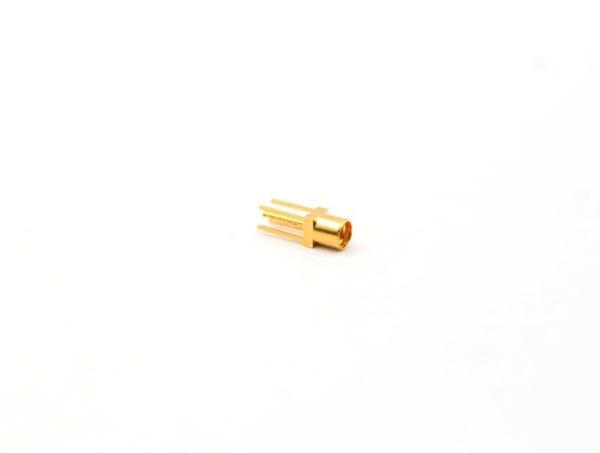

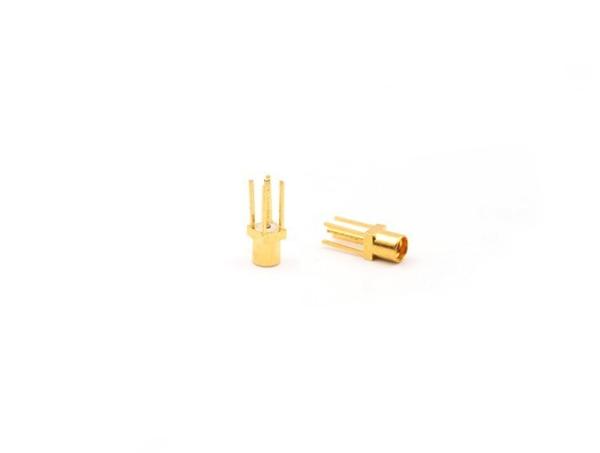

MMCX Female Connector for Terminal
MMCX Female Connector for Terminal
MMCX Female Connector for Terminal
MMCX Female Connector for Terminal
MMCX Female Connector for Terminal
MMCX Female Connector for Terminal
Specifications
Brand Name :
Terui
Model Number :
MMCX-KHDT
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

MMCX Female Connector for Terminal

TYPE MMCX is a one kind of miniature connector with snap-on mechanism.The connector is applicable from DC up to 6GHZ with advantages of small size, light weight, low RF leakage and etc.

It has two kind of versions:50Ω and 75Ω.

.

Product Details

MMCX Female Connector for Terminal

Teruilai P/N: MMCX-KHDT

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range 0-6GHZ
Dieletric withstanding voltage 500V
Characteristic impedance 50Ω
Insulation Resistance ≧1000MΩ
VSWR 1.25:1
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -40℃ to 90℃
Material data Requirments
Connector parts Material Plating
Body Brass Gold
Pin contacts Brass Gold
Insulators PTEE
