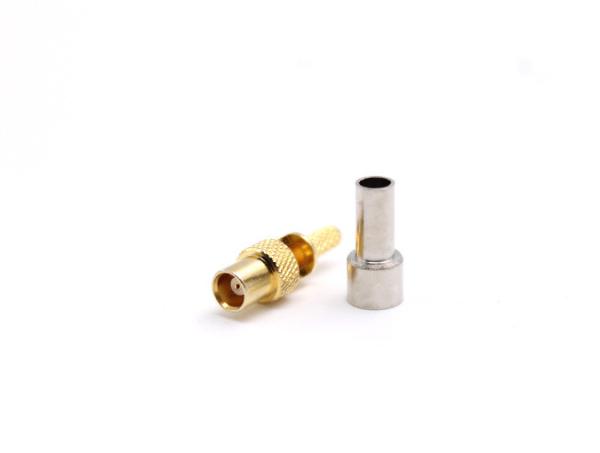

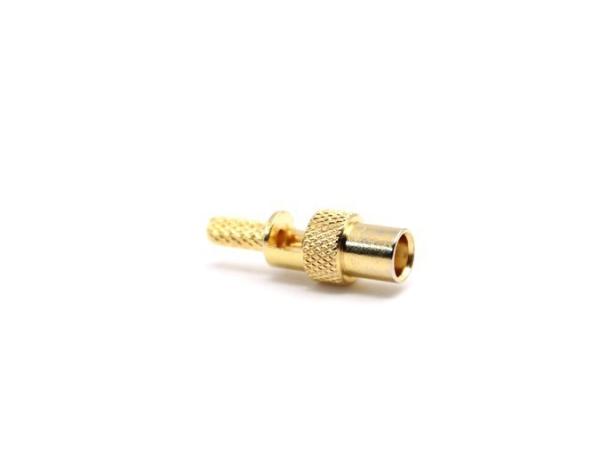

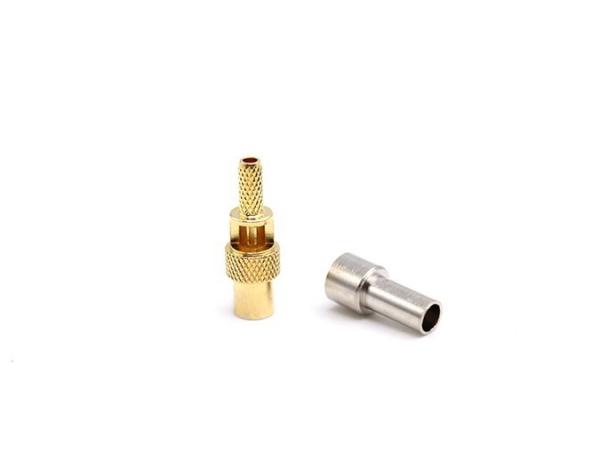

RF Connector MCX Female for RG316 Cable
RF Connector MCX Female for RG316 Cable
RF Connector MCX Female for RG316 Cable
RF Connector MCX Female for RG316 Cable
RF Connector MCX Female for RG316 Cable
RF Connector MCX Female for RG316 Cable
Specifications
Brand Name :
Terui
Model Number :
MCX-K3CA
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

RF Connector MCX Female for RG316 Cable

Type MCX is one kind of RF coaxial conectors with miniature snap-on coupling mechanism, which has the characteristics of light weight,

small size, concise structure and easy to use, they are sure to fit most applications where space, weight, performance and easey to assembly

are required in RF circuits of fixed communication instruments.

Product Details

RF Connector MCX Female for RG316 Cable

Teruilai P/N: MCX-K3CA

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range 0-6GHZ(50Ω)
Dieletric withstanding voltage 750V
Characteristic impedance 50Ω
Insulation Resistance ≧1000MΩ
Contact Resistance
.Center conductor ≦5mΩ
.Outer conductor ≦2.5mΩ
VSWR ≦1.3
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -65℃ to+155℃
Material data Requirments
Connector parts Material Plating
Body Brass Gold plated
spring contacts Beryllium copper Gold plated
Insulators teflon
Pin contacts Brass Gold plated
Crimp ferrules Brass Gold plated
